Question

Which of the following quantities is always negative in SHM?
A. $\overrightarrow F .\overrightarrow r$
B. $\overrightarrow F .\overrightarrow r$
C. $\overrightarrow v .\overrightarrow r$
D. $\overrightarrow a .\overrightarrow r$

Answer 1

This question utilizes the concept of Simple harmonic motion. We know that dot products of two vectors are negative when their directions are opposite to each other. So, we need to find the quantities whose directions are always opposite to each other.

Complete step by step answer:

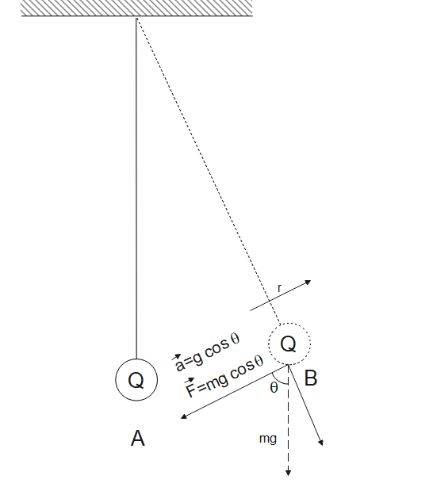

Let there be a ball $Q$ which is hanging from a pendulum.Let its mean position be $A$. Let it oscillate in SHM and there be a point $B$ along its path. There, the forces acting on the ball will be as shown in the figure.

Here, we can see that the displacement $\overrightarrow r$ is always opposite to the force $\overrightarrow F$. Also, the acceleration $\overrightarrow a$ is always opposite to the direction of displacement $\overrightarrow r$. Here, for calculating displacement $\overrightarrow r$ , $A$ is taken as the origin point. But, for certain points, velocity $\overrightarrow v$ is opposite to displacement $\overrightarrow r$ and for the other points, they are in the same direction. Force $\overrightarrow F$ and acceleration $\overrightarrow a$ are always in the same direction.

Therefore, option A and option D are correct.

Additional Information: When the ball $Q$ is released from the right top point of the motion, the velocity vector becomes negative whereas the displacement vector is positive. Then, when it moves from the mean position to the left side, the velocity vector is still negative and the displacement is also negative. Here, Right side of the $x$ axis is considered positive for displacement and travelling towards the right is considered positive velocity.

Note: Students usually get confused when resolving a vector into two parts. Just remember that the vertical component of the vector is the vector multiplied by $\sin \theta$ and the horizontal component is the vector multiplied by $\cos \theta$ . Here, $\theta$ is the angle between the vector and the assumed horizontal axis.
