Question

Using the Mulliken-barker test, how is the nitro group detected?

Answer 1

Hint : Mulliken barker test is used in the detecting nitro group in a compound. Nitro group is detected by the silver-mirror appearance that appears at the end of the reaction.

Complete Step By Step Answer:
In Mulliken barker test, the nitro group $( - N{O_2})$ is reduced to hydroxylamine (usually known as $HONO$ or $- NHOH$ group) in the presence of a neutral reducing agent. Hydroxylamine is further heated with Tollen’s reagent $([Ag{(N{H_3})_2}]OH)$. On heating, hydroxylamine gets oxidised to the respective nitroso compound and the Tollen’s reagent is reduced to metallic silver.

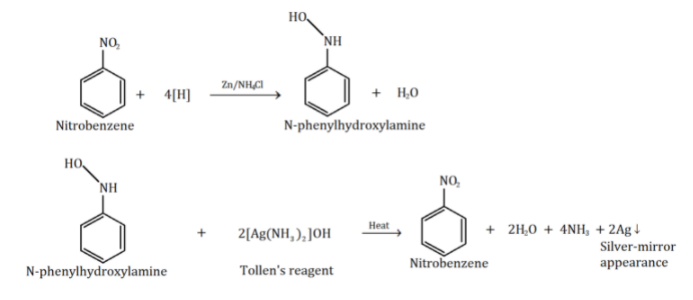

The following reaction will take place for Nitrobenzene in Mulliken-barker test:

In the reaction above, nitrobenzene is first dissolved into dilute alcohol. Then, we add a solution of ammonium chloride along with zinc dust in the solution of dilute alcohol and nitrobenzene. This results in nitrobenzene turning to $N -$ phenylhydroxylamine. This solution of $N -$ phenylhydroxylamine is then filtered to another test tube where it is heated for $2 - 3$ minutes. After that, a little amount of Tollen’s reagent is added into the solution. This gives a silver mirror appearance to the solution. This silver-mirror appearance is due to the precipitation of metallic silver.

Note :
This test can be used for all the compounds that contain nitro groups. The silver metal appearance obtained at the end of the reaction indicates the presence of nitro groups in the given compound. Tollen’s reagent is also used for testing the presence of aldehydes and ketones in a given solution. Tollen’s reagent oxidizes the given aldehyde into its corresponding carboxylic acid and gives a silver mirror appearance. While there is no reaction of Tollen’s reagent with ketones.
