Question

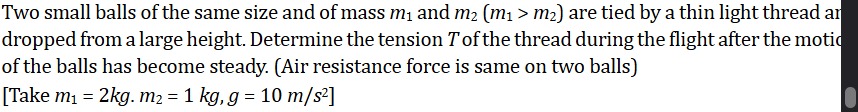

Two small balls of the same size and of mass $m_1$ and $m_2$ ($m_1 > m_2$) are tied by a thin light thread and dropped from a large height. Determine the tension $T$ of the thread during the flight after the motion of the balls has become steady. (Air resistance force is same on two balls)

• A. The tension $T$ of the thread is $\frac{(m_1-m_2)g}{2}$.
• B. The tension $T$ of the thread is $\frac{(m_1+m_2)g}{2}$.
• C. The tension $T$ of the thread is $0$ N.
• D. The tension $T$ of the thread is $m_1g - F_{air}$.

Answer 1

Answer: (A)

The tension $T$ of the thread is $\frac{(m_1-m_2)g}{2}$.

Answer 2

When the balls are dropped and reach steady motion, their acceleration is zero. The forces acting on each ball are gravity (downwards), air resistance (upwards, same for both balls), and tension from the thread. For the thread to have positive tension, the heavier ball ($m_1$) must be below the lighter ball ($m_2$).

Let's consider the forces acting on each ball, assuming downward motion and taking downwards as the positive direction:

For the lighter ball ($m_2$) at the top: Gravity ($m_2g$) downwards, Air resistance ($F_{air}$) upwards, Tension ($T$) downwards (pulling $m_2$ towards $m_1$). Equation of motion: $m_2g - F_{air} - T = 0$ (1)

For the heavier ball ($m_1$) at the bottom: Gravity ($m_1g$) downwards, Air resistance ($F_{air}$) upwards, Tension ($T$) upwards (pulling $m_1$ towards $m_2$). Equation of motion: $m_1g - F_{air} + T = 0$ (2)

Adding equations (1) and (2): $(m_2g - F_{air} - T) + (m_1g - F_{air} + T) = 0$ $(m_1 + m_2)g - 2F_{air} = 0$ This implies $F_{air} = \frac{(m_1 + m_2)g}{2}$.

Now, substitute the expression for $F_{air}$ back into equation (2): $m_1g - \frac{(m_1 + m_2)g}{2} + T = 0$ $T = \frac{(m_1 + m_2)g}{2} - m_1g$ $T = \frac{m_1g + m_2g - 2m_1g}{2}$ $T = \frac{m_2g - m_1g}{2} = \frac{(m_2 - m_1)g}{2}$

Wait, this result suggests negative tension if $m_1 > m_2$. Let's re-evaluate the force direction for tension. If the thread is under tension, it pulls the objects. If $m_1$ is above $m_2$, then $T$ pulls $m_1$ up and $m_2$ down. Let's assume the configuration where the heavier ball is above the lighter ball.

If $m_1$ (heavier) is above $m_2$ (lighter): For $m_1$: $m_1g - F_{air} - T = 0$ (1) For $m_2$: $m_2g - F_{air} + T = 0$ (2) Adding (1) and (2): $(m_1+m_2)g - 2F_{air} = 0 \implies F_{air} = \frac{(m_1+m_2)g}{2}$. Substituting into (2): $m_2g - \frac{(m_1+m_2)g}{2} + T = 0 \implies T = \frac{(m_1+m_2)g}{2} - m_2g = \frac{m_1g - m_2g}{2} = \frac{(m_1-m_2)g}{2}$. This results in positive tension as $m_1 > m_2$.

If $m_2$ (lighter) is above $m_1$ (heavier): For $m_2$: $m_2g - F_{air} - T = 0$ (1') For $m_1$: $m_1g - F_{air} + T = 0$ (2') Adding (1') and (2'): $(m_1+m_2)g - 2F_{air} = 0 \implies F_{air} = \frac{(m_1+m_2)g}{2}$. Substituting into (2'): $m_1g - \frac{(m_1+m_2)g}{2} + T = 0 \implies T = \frac{(m_1+m_2)g}{2} - m_1g = \frac{m_2g - m_1g}{2} = \frac{(m_2-m_1)g}{2}$. This results in negative tension, which a thread cannot sustain.

Therefore, the only physically possible configuration for a thread is when the heavier mass is above the lighter mass, leading to a tension of $T = \frac{(m_1-m_2)g}{2}$.

Given values: $m_1 = 2kg$, $m_2 = 1kg$, $g = 10 m/s^2$. $T = \frac{(2 \text{ kg} - 1 \text{ kg}) \times 10 \text{ m/s}^2}{2} = \frac{1 \text{ kg} \times 10 \text{ m/s}^2}{2} = \frac{10 \text{ N}}{2} = 5 \text{ N}$.
