Question

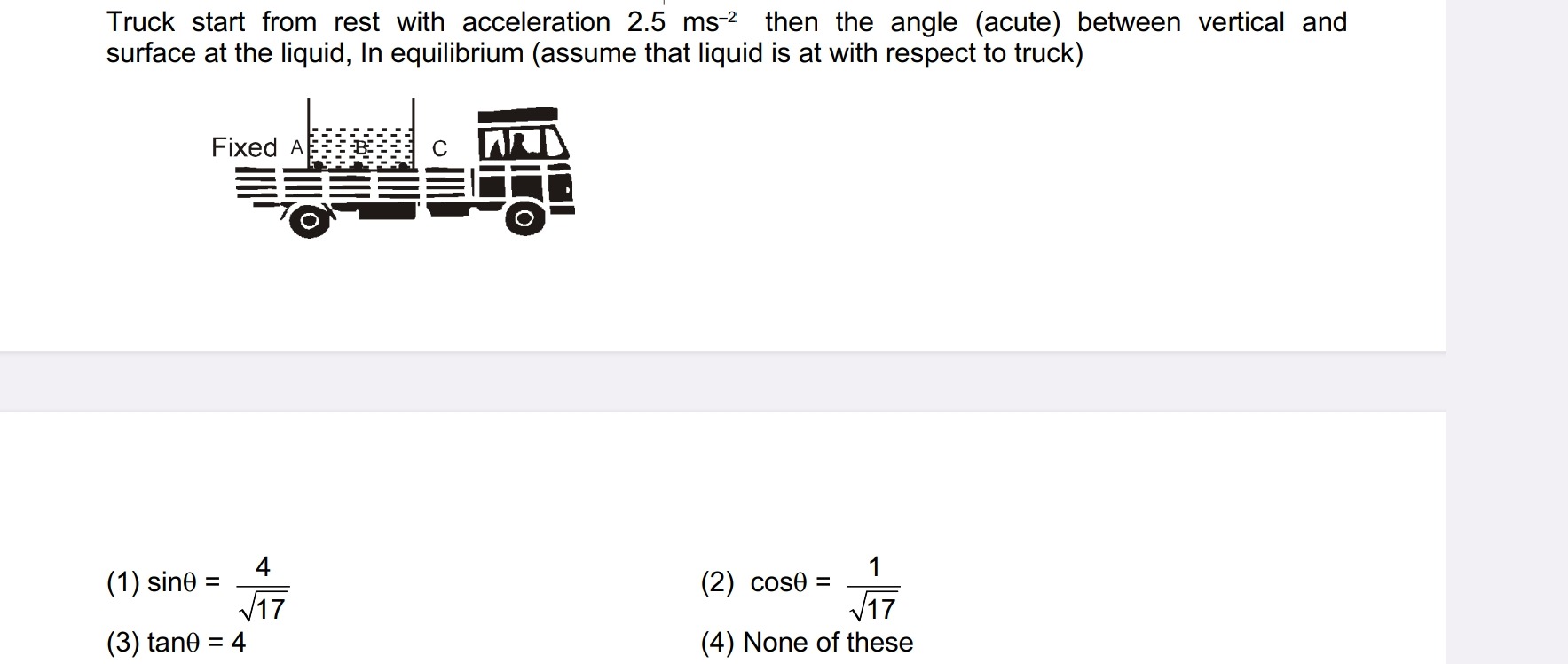

Truck start from rest with acceleration 2.5 ms-2 then the angle (acute) between vertical and surface at the liquid, In equilibrium (assume that liquid is at with respect to truck)

• A. $\sin\theta = \frac{4}{\sqrt{17}}$
• B. $\cos\theta = \frac{1}{\sqrt{17}}$
• C. $\tan\theta = 4$
• D. None of these

Answer 1

Answer: (A), (B), (C)

$\tan\theta = 4$

Answer 2

In the accelerating frame of the truck, the liquid surface is perpendicular to the effective gravity, which is the vector sum of gravitational acceleration ($\vec{g}$) and the fictitious force acceleration ($-\vec{a}$). The angle $\theta$ between the vertical and the liquid surface is such that $\tan\theta = \frac{a}{g}$, where $a$ is the acceleration of the truck and $g$ is the acceleration due to gravity. Given $a = 2.5 \, \text{ms}^{-2}$. If we assume that the options are derived from a scenario where $a/g = 4$, then $\tan\theta = 4$. This leads to $\sin\theta = \frac{4}{\sqrt{17}}$ and $\cos\theta = \frac{1}{\sqrt{17}}$. Therefore, options (1), (2), and (3) are consistent with each other and imply $\tan\theta = 4$. The specific value of $a=2.5 \, \text{ms}^{-2}$ would imply $g = a/4 = 0.625 \, \text{ms}^{-2}$, which is an unusual value for $g$. However, based on the provided options, the intended relationship is $\tan\theta = 4$.
