Question

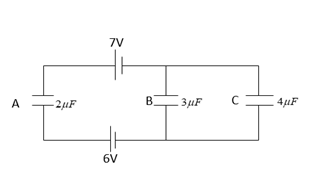

Three capacitors A, B and C are connected in a circuit as shown in figure. What is the charge in $\mu C$ on the capacitor B?

$\left( A \right)\dfrac{1}{3}$
$\left( B \right)\dfrac{2}{3}$
$\left( C \right)1$
$\left( {\text{D}} \right)\dfrac{4}{3}$

Answer 1

Current flowing through the capacitors is the same for all the capacitors when the capacitor is connected in series. Then each capacitor will have the same amount of electrical charge. In parallel connection the voltage is the same for all capacitors connected parallelly. Apply this logic to find the Charge in the circuit.

Complete step by step answer:
Capacitor is a component that has the capacity to store the energy. It is in the form of electrical charge producing a potential difference across its plates. Electrons flowing onto the plates are known as charging of capacitors. The potential difference depends on the number of charges present on the plates of the capacitor.
If the DC source is one in a resistance containing circuit, then the current will attain its maximum steady value in zero-time interval. A resistor circuit containing both inductor and capacitor, the current will take some time to attain its maximum peak value. If the battery is removed from the circuit which is having a capacitor or an inductor, then the current takes some time to decay to zero value.
Resonance occurs in a circuit that is when the inductor, capacitor and resistor are connected in series when the supply frequency causes the voltage across the inductor and capacitor to be equal. Q factor will be affected if there is resistive loss. Q factor is a unitless dimensionless quantity.
Current flowing through the capacitors is the same for all the capacitors when the capacitor is connected in series. Then each capacitor will have the same amount of electrical charge. In parallel connection the voltage is the same for all capacitors connected parallelly. Apply this logic to find the capacitance of the circuit
B and C are in parallel and (B+C) and A are in series from the above diagram.
Then the capacitance (equivalent)
${C_{eq}} = \dfrac{{\left( {{C_C} + {C_B}} \right){C_A}}}{{\left( {{C_C} + {C_B}} \right) + {C_A}}} = \dfrac{{\left( {3 + 4} \right)2}}{{\left( {3 + 4} \right) + 2}} = \dfrac{{14}}{9}\mu F$
The net charge is given by
${Q_{eq}} = {C_{eq}}\left( {7 - 6} \right) = \dfrac{{14}}{9}\mu C$
Group (B+C) and A are in series so then the charge on (B+C) and A is the same. Then the charge on B
${Q_B} = \dfrac{{{C_B}}}{{{C_B} + {C_C}}}{Q_q} = \dfrac{3}{{3 + 4}} \times \dfrac{{14}}{9} = \dfrac{2}{3}\mu C$

Hence, the correct answer is option (B).

Note: Electron flowing onto the plates is known as charging of capacitor. The potential difference depends on the number of charges present on the plates of the capacitor. If the battery is removed from the circuit which is having a capacitor or an inductor, then the current takes some time to decay to zero value.
