Question

The work done in taking an ideal gas through one cycle of operation as shown in the indicated diagram:

A. ${10^{ - 5}}\,J$

B. ${10^{ - 3}}\,J$

C. ${10^{ - 2}}\,J$

D. $10\,J$

Answer 1

Gases may expand or contract under a certain constraint (e.g. pressure); the final state of the gas may vary based on the form of constraint. For instance, in a different state than a gas that expands while pressure remains constant (called isobaric process), an ideal gas that expands while its temperature is held constant (called isothermal process) can occur. The isobaric mechanism and associated concepts are discussed below.

Complete step by step solution:
Now let us see what isobaric process is-
A thermodynamic process is an isobaric process in which pressure remains constant $\Delta P = 0$ . For an ideal gas, this suggests that a gas’s volume is equal to its temperature. Let’s assume a case where, at constant $P$, a gas acts on a piston. The force exerted is constant since the friction is constant, and the work performed is given as
$W = Fd$
where $F = PA$ is the force imposed by the friction on the piston.
The work done by the gas is-
$W = PAd$
Since, a cylinder’s change in volume is its cross-sectional area $A$ times the displacement $d$ , the volume change is given by $Ad = V$
Hence, $W = P\Delta V$

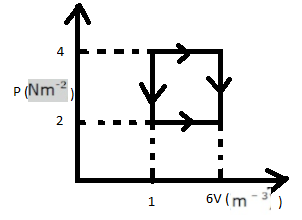

Now, let us consider the rectangle ABCD-
Work done = Area of ABCD
= $AB \times BC$
= $(4 - 2) \times (6 - 1)$
= $10\,J$
The work done in taking an ideal gas through one cycle of operation as shown in the indicator diagram is $10\,Joule$ .
Hence, option D is correct.

Note:
Here we have to observe the diagram and consider the triangle ABCD. Also for an isobaric process if $\Delta V$ is positive, work done is also positive, which implies the gas functions in the outside world.
