Question

Question: The ratio (R) of output resistance \({{r}_{0}}\)​, and the input resistance \({{r}_{i}}\)​ in measur...

The ratio (R) of output resistance r0{{r}_{0}}​, and the input resistance ri{{r}_{i}}​ in measurements of input and output characteristics of a transistor is typically in the range :
a).102−103 b).1−10 c).0.1−1.0 d).0.1−0.001 \begin{aligned} & a). {{10}^{2}}-{{10}^{3}} \\\ & b). 1-10 \\\ & c). 0.1-1.0 \\\ & d). 0.1-0.001 \\\ \end{aligned}

Explanation

Solution

Find the resistors acting as an input resistor and an output resistor in any transistor. Next, find the range of those individual resistances. As the ratio between the output and the input resistors can be found by dividing the ratios of the ranges of input and output resistors, we can easily find the ratio.
Formulas used:
R=RoutRinR=\dfrac{{{R}_{out}}}{{{R}_{in}}}

Complete step-by-step solution:
In a transistor, the input resistance throughout the circuit will be rπ{{r}_{\pi }} as the current through the resistor r0{{r}_{0}} is the only way to pass. The output resistance ill then be equal to Rout=r0{{R}_{out}}={{r}_{0}}
Therefore, the ratio between the output resistance and input resistance will be,
Ratio=r0rπRatio=\dfrac{{{r}_{0}}}{{{r}_{\pi }}}

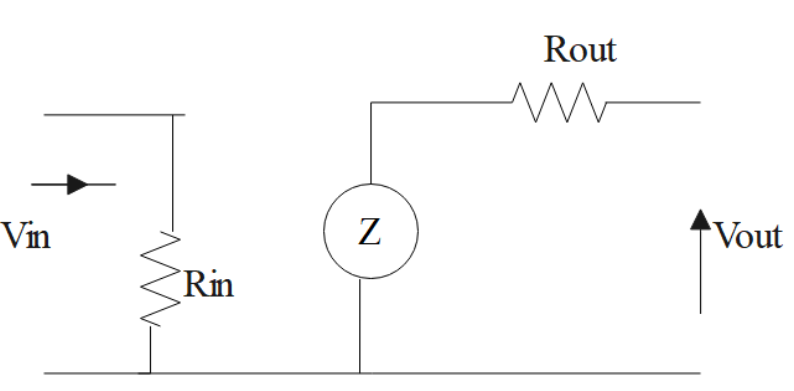

The circuit diagram of a transistor is as follows:

The output resistance is very large in a transistor and its range will be in the order of 100kΩ100k\Omega and the input resistor in a transistor will be of order 1−10kΩ1-10k\Omega
Hence, the ratio between the output resistance and the input resistance will be of order 100-1000.

Therefore, the correct option is option a.

Additional information:
A transistor is a semiconductor device used to amplify or switch electronic signals and electric power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. In our day-to-day life, we come across two different types of transistors, one is the PNP transistor, the other transistor ebbing the NPN transistor. A transistor is a type of semiconductor device that can be used to both conduct and insulate electric current or voltage. A transistor basically acts as a switch and an amplifier. In simple words, we can say that a transistor is a miniature device that is used to control or regulate the flow of electronic signals.

Note: The range of input resistors and the output resistors in transistors are not the same for all. Each transistor will be having different ranges of input resistors and output resistors. In the above case, we have considered the small-signal model of a BJT circuit.
