Question

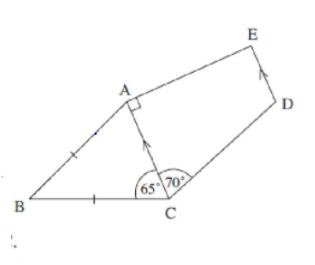

The pentagon ABCDE is the frame for Ibrahim's mountain bike.
ABC is an isosceles triangle in which AB=BC and angle BCA=65°.
In the quadrilateral, ACDE angle ACD=70°, angle CAE=90°, and AC is parallel to ED.
(a.) (i) Calculate the size of the angle ABC.
(ii) What facts about the angles of a triangle did you use in your calculation?
(b). Calculate the size of the angle CDE.

Answer 1

Solution

A pentagon is a 5-sided Polygon. A regular pentagon has five lines of reflectional symmetry, and rotational symmetry of order 5 (through 72°, 144°, 216° and 288°). A convex pentagon has no angles pointing inwards. More precisely, no internal angles can be more than 180°. When any internal angle is greater than 180° it is concave.

Complete step by step solution:
(a). Given:
$AB = BC$
∠BCA=∠BAC= $65^\circ$
So,∠BCA+∠BAC+∠ABC= $180∘$
$65^\circ + 65^\circ +$ ∠ABC= $180^\circ$
∠ABC= $180^\circ - 130^\circ$

∠ABC= $50$

(b). ∠CDE+∠ACD= $180^\circ$
(Where AC||ED)
∠CDE+ $70^\circ = 180^\circ$

∠CDE= $110^\circ$

Note: The properties of a simple pentagon (5-gon) are it must have five straight sides that meet to create five vertices but do not self-intersect: Pentagons have five straight sides. Pentagons have five interior angles, which sum to 540° The five sides do not intersect.

Additional information: There are two types of pentagon on the basis of sides and angles:
a. Regular pentagon
b. Irregular pentagon

Regular pentagon: A pentagon which has all five sides equal in length and eventually, all the five angles are equal in measure, is known as regular pentagon. Each interior angle of a regular pentagon is 1080.

Irregular pentagon: An irregular pentagon is a pentagon which does not have all sides equal. Also, it does not have all angles equal.

Pentagons can be regular or irregular and convex or concave. A regular pentagon is one with all equal sides and angles. Its interior angles are 108 degrees and its exterior angles are 72 degrees. An irregular pentagon is a shape that does not have equal sides and/or angles and therefore, does not have specified angles.

A convex pentagon is one whose vertices, or points where the sides meet, are pointing outwards as opposed to a concave pentagon whose vertices point inwards.
