Question: The frequency response curve (as shown in figure below) for the filter circuit used for production o...

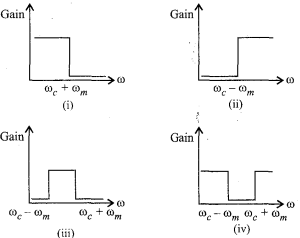

The frequency response curve (as shown in figure below) for the filter circuit used for production of AM wave should be.

A

(i) followed by (ii)

B

(ii) followed by (i)

C

(iii)

D

All of these

Answer

All of these

Explanation

Solution

: Bandwidth of AM wave should be

2ωm=(ωc+ωm)(ωcωm)2\omega_{m} = (\omega_{c} + \omega_{m}) - (\omega_{c} - \omega_{m})

It is applicable for case (i), (ii) and (iii)

The case (iv) will reject the required signal for AM waves
