Question: The current through the 10 \(\Omega\) resistor shown in figure is ![](https://www.vedantu.com/ques...

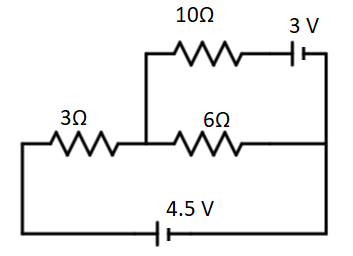

The current through the 10 Ω\Omega resistor shown in figure is

(A) 0.1 A
(B) 0.2 A
(C) 0.3 A
(D) zero

Explanation

Solution

The Kirchhoff’s voltage law and current law can be applied here to determine the current through the given resistor. We have two loops and 3 equations in total to obtain the value of the total two missing variables here.
Formula used:
The Kirchhoff’s voltage law states that the product of current and resistance in a loop is equal to the emf in the loop or,
ΣIR=0\Sigma IR = 0,
Similarly, Kirchhoff’s current law states that the sum of all currents through the node is zero:
ΣI=0\Sigma I = 0

Complete answer:
First we apply the Kirchhoff’s current law at the node where the current division is taking place i.e. point connecting 3, 6 and 10 Ω\Omega resistance.

Let the current entering from the bigger loop be i (marked in the diagram),
i=i1+i2i = i_1 + i_2
the current through our resistance will be i2_2, therefore, the current in the 6 Ω\Omega resistance will be i - i2_2.
Now, we consider the small loop on the upper side, applying Kirchhoff’s voltage law, we obtain:
3V=3i2+6(ii2)3 V = 3 i_2 + 6 ( i - i_2) .
Simplification of this gives us:
3=6i3i23 = 6 i - 3 i_2
We use i from here for the purpose of substitutions,
i=1+i22i = \dfrac{1 + i_2}{2}.
Now applying the Voltage law to the bigger loop, we get:
4.5V=3i+6(ii2)4.5 V = 3 i + 6 ( i - i_2) .
    4.5V=9i6i2\implies 4.5 V = 9 i - 6 i_2
Substituting the value of i here, we get:
4.5V=9(1+2i2)26i24.5 V = 9 \dfrac{ (1 + 2 i_2)}{2} - 6 i_2
    i2=0\implies i_2 = 0
As we can see,

The correct answer is option (D) zero.

Note:
In applying Kirchhoff’s voltage law, one can start with one circuit element at a time and can go across the loop in the direction of current or opposite to it. The resistance polarities have to be marked according to the direction of current. The direction of the loop can be selected by us to be either clockwise or anticlockwise. If we go in the direction of the loop we travel from + to -, we mark that element positive and we mark negative when we go in the opposite direction.
