Question: The correct way of connecting the ammeter and voltmeter with a series combination of two resistors i...

The correct way of connecting the ammeter and voltmeter with a series combination of two resistors in a circuit for finding their equivalent is shown in the diagram.




A) A
B) B
C) C
D) D

Explanation

Solution

Observe the four circuit diagram (A), (B), (C) and (D). After observing them, make sure that Ammeter is connected in series combination across electrical components and Voltmeter is connected in parallel combination. Check this fact with all the circuit diagrams and then evaluate the correct one.

Complete answer:
Given that two resistances R1{{\text{R}}_{\text{1}}} and R2{{\text{R}}_{\text{2}}} are connected in series combination along with Voltmeter and Ammeter.

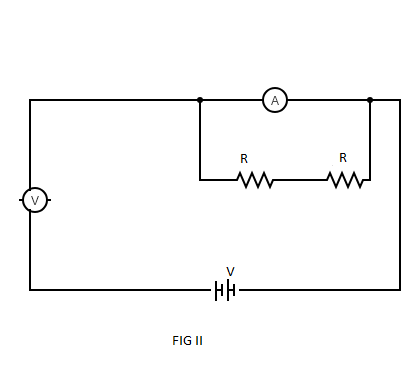

In circuit diagram (A), Ammeter is connected in parallel combination across resistances R1{R_1} and R2{R_2}here, voltmeter is connected in series combination across resistances R1{R_1} and R2{R_2} but Ammeter is always connected in series combination and Voltmeter is connected in parallel combination.
So, connections made in figure (A) are incorrect.

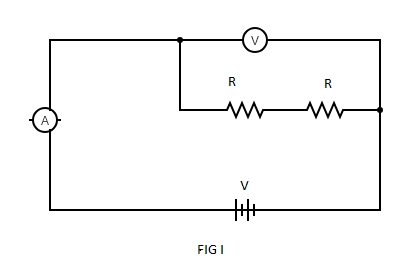

In circuit diagram (B), Ammeter is connected in series combination across resistances R1 and R2 and voltmeter is connected in parallel combination across resistances R1{R_1} and R2{R_2} .
As Ammeter is always connected in series combination and Voltmeter is connected in parallel combination.
So, connections made in figure (B) are correct.

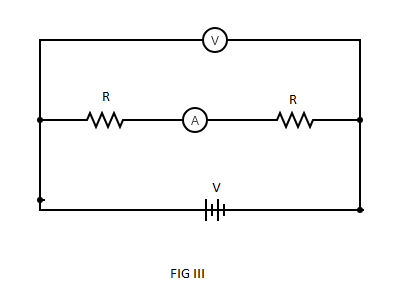

In circuit diagram (C), Ammeter is connected in between two resistances R1 and R2 and voltmeter is connected in parallel combination across resistances R1{R_1} and R2{R_2} .
As, Ammeter is always connected in series combination across electrical components and Voltmeter is connected in parallel combination.
Here, the connection of Voltmeter is correct but the connection of Ammeter is incorrect.
So, connections made in figure (C) are incorrect.

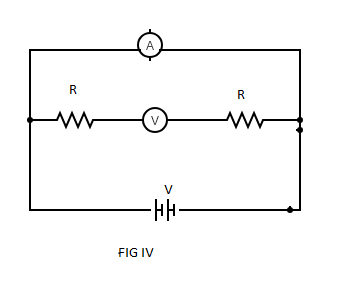

In circuit diagram (D), Ammeter is connected in parallel combination across resistances R1{R_1} and R2{R_2} and voltmeter is connected in series combination between two resistances R1{R_1} and R2{R_2} .
As, Ammeter is always connected in series combination across electrical components and Voltmeter is connected in parallel combination.
Here, the connection between Voltmeter and Ammeter is incorrect.
So, connections made in figure (D) are incorrect.

Therefore, option (B) is the correct choice.

Note:
Ammeter is always connected in series combination because the current flows through each and every component is same in the circuit. Resistance of the Ammeter is low. Voltmeter is used to measure the potential difference between two points in a circuit, Resistance of Voltmeter is high. However, resistors can be connected in series or in parallel combination.
