Question: The correct graph representation of potential along the branch PQRS is – <img src="https://cdn.pure...
The correct graph representation of potential along the branch PQRS is –

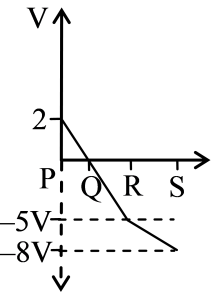

A

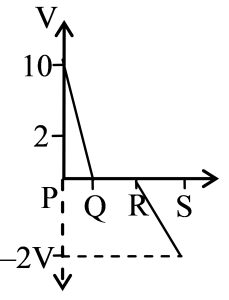

B
C
D
Answer
Explanation
Solution
As we move from P to S we are moving from high potential to low potential. Since P is connected to + ve terminal of battery it should be at positive potential. Q is grounded hence it should be at zero potential. R & S should be at negative potential.
