Question

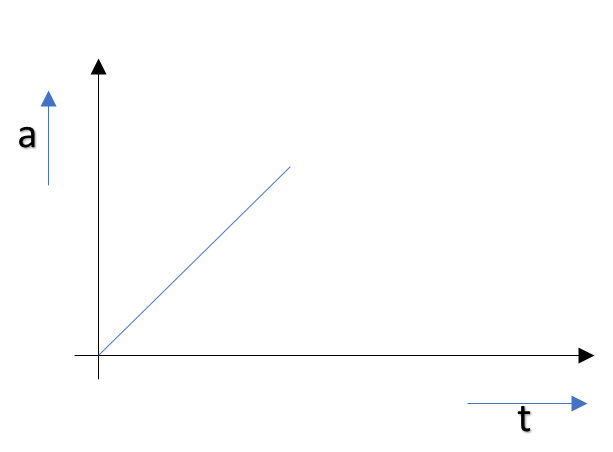

The acceleration-time graph of a body is shown in the figure. The most probable velocity-time graph of the body is:

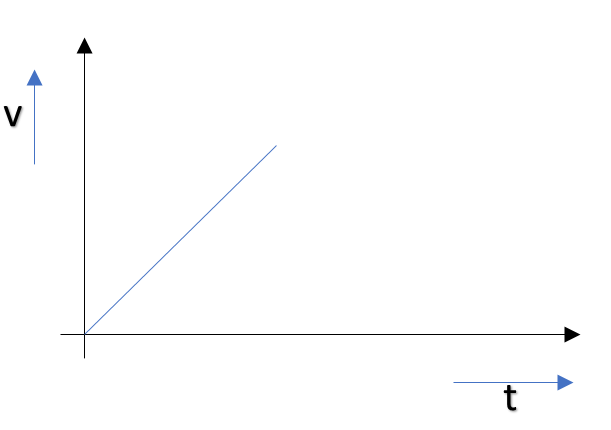

A.)

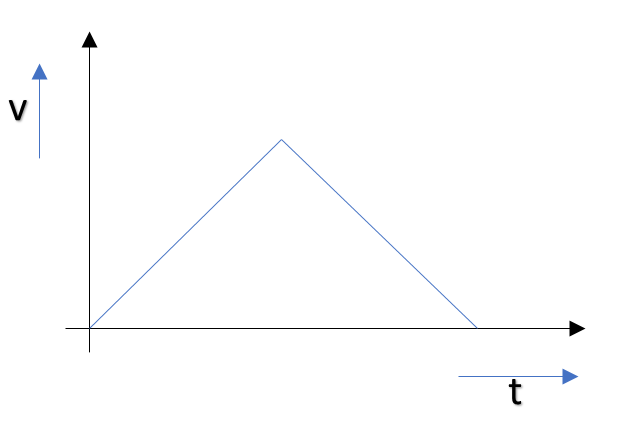

B.)

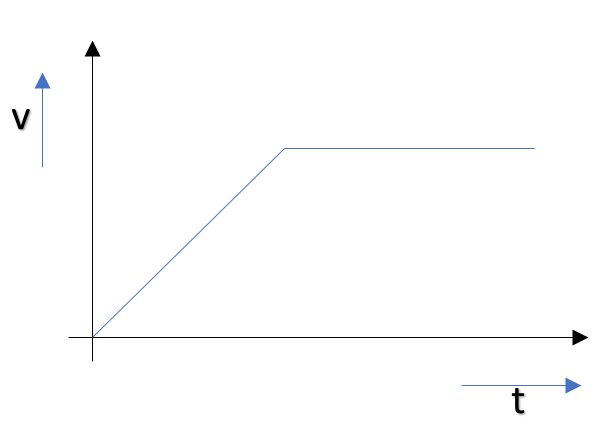

C.)
D.)

Answer 1

Considering only the motion of particles due to natural parameters like gravity, any motion on earth could be divided into two categories viz. straight line and parabolic path. A motion is parabolic if the initial velocity is not in the direction of acceleration due to gravity. Whereas a motion is a straight line only if either the velocity is zero or is in or opposite to the direction of acceleration due to gravity.

Formula used:
$a = \dfrac{dv}{dt}$

Complete answer:
Here, we are asked about the nature of the velocity time graph. Thus our foremost step must be to find the relation between velocity and time. Since the acceleration and time relation is linear, thus we can write:
$a = kt$, which is the equation of a line passing through the origin and having slope ‘m’.
Now, as acceleration is defined as the rate of change of velocity i.e. $a = \dfrac{dv}{dt}$, thus
$\dfrac{dv}{dt} = kt$
Or $dv = kt\ dt$
Integrating the equation without considering the constant of integration, we get;
$\int dv = \int ktdt = k\int tdt = k\dfrac{t^2}{2}$
Or $v= \dfrac{kt^2}{2}$.

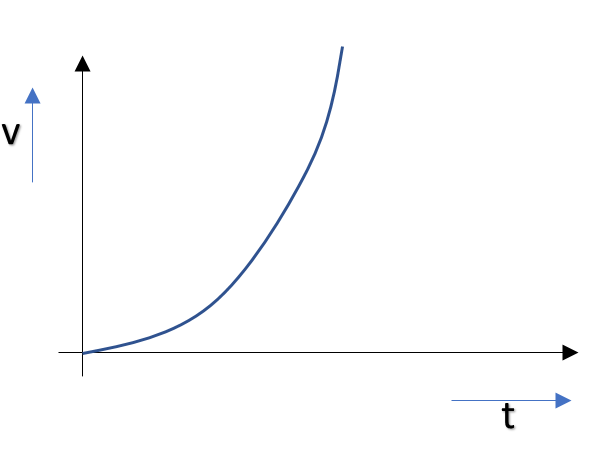

Hence, the relationship between velocity and time is parabolic. Thus the correct plot of velocity and time will be

So, the correct answer is “Option D”.

Note:
But saying that it moves in a parabolic path won’t be correct. For that we have to establish an equation between ‘x’ and ‘y’ coordinates. As it is not mentioned anywhere about the initial conditions of motion of the body, thus we can’t say anything about the actual motion of the particle. Also, we can observe here that the acceleration is not constant with time. Thus it can’t be the case of free fall motion.
