Question: The figure shows a network of five resistances and two batteries Q.23 The current through the 30V b...

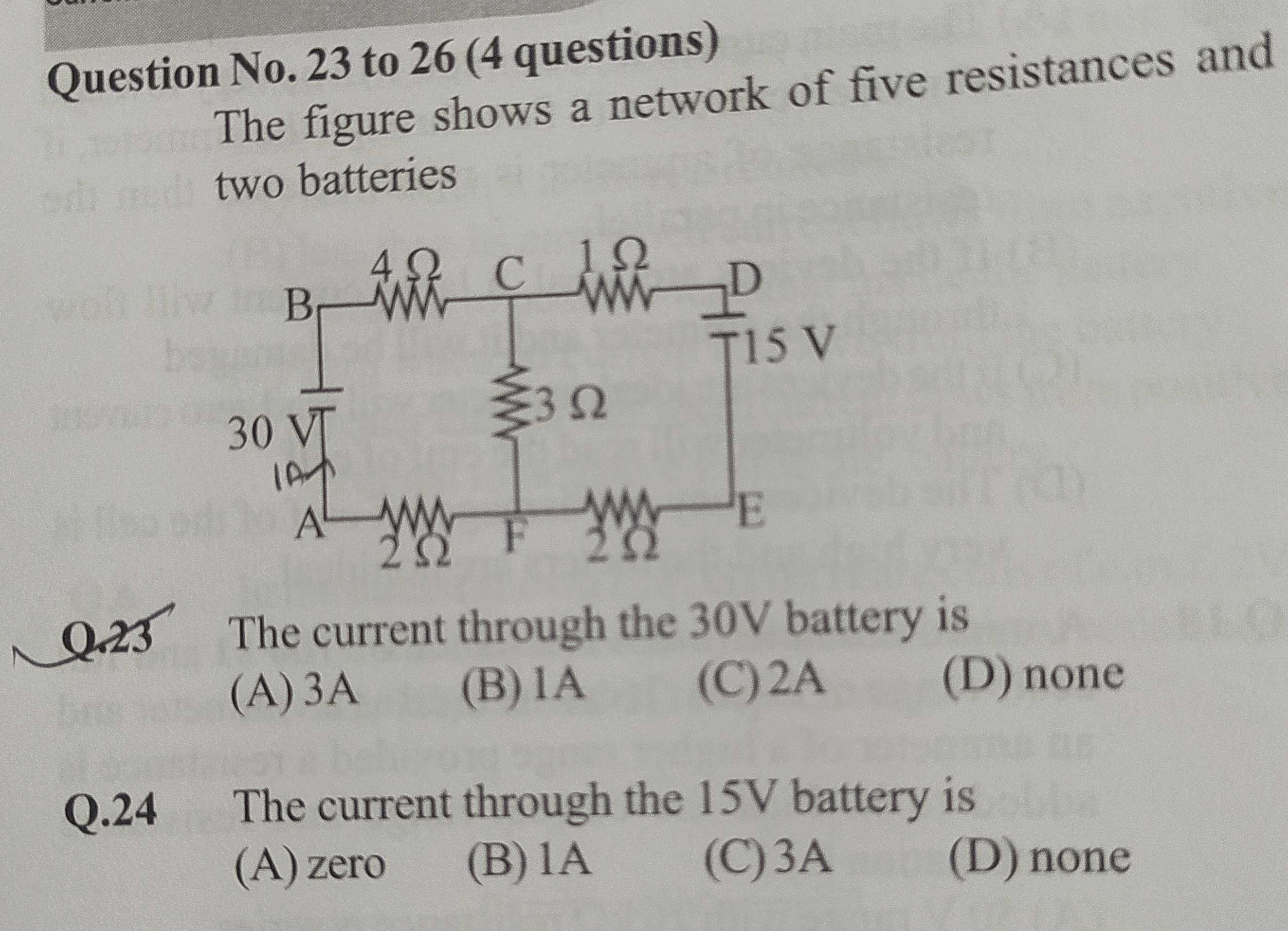

The figure shows a network of five resistances and two batteries
Q.23 The current through the 30V battery is
A
3A
B
1A
C
2A
D
none
Answer
3A
Explanation
Solution
Using mesh analysis, the current through the 30V battery is found to be 3A.
