Question

In the system shown, pulley and string are ideal. The vertical upward pull F is being increased gradually. Find the magnitude of F and acceleration of the $5\;kg$ block at the moment the $10\;kg$ leaves the floor.

Answer 1

We can assume the pulley-mass to be a system. There are two forces which act on the system. One is the tension on the string, and the other is the force due to gravitation. Then the resultant vector is the force acting on the whole system.

Formula used: $T=mg$

Complete step by step answer:
We know that a pulley is a simple device that can lift heavy objects with minimum energy. Here a block of some mass is attached to the pulley. A pulley consists of a tensile string or rope, which is used to tie and lift the heavy body and a shaft above which the string is kept. The shaft is circular generally and allows the easy movement of the string.
The force needed to lift the massive body is greater than the force needed to pull it using a pulley. Hence pulleys are used to lift heavy objects

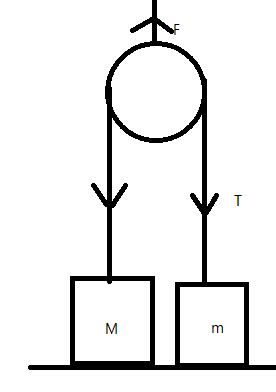

Consider the pulley-mass system as shown in the figure. Where $M=10kg$ and $m=5kg$ is the mass of the blocks. Let $T$ be the tension on the string and $F$ be the force due to gravitation.

Clearly, we can say that $F=2T$
$\implies T=\dfrac{F}{2}$
We also know that $T=mg$
Just as the $10\;kg$ block leaves the floor, the tension experienced by the string is given as $T=10\times 10=100N$
Clearly, $F=2\times 100=200N$
At the same instant, let us assume that the block of mass $m=5kg$ is accelerated in the upward direction, say $a$.
Clearly, the total force on the block is given as $T-mg=F$
And also , $F=ma$
Then, we can say that $T-mg=ma$
Substituting the values we have, $100-50=5\times a$
$\implies a=10m/s^{2}$

Thus the net force $F$ acting in the upward direction is $200\;N$ and the acceleration of the body $m=5kg$ is $10m/s^{2}$

Note: Since tension and force are both vectors, the direction of the resultant force will be the addition of the two vectors using the parallelogram law of addition. Here only the force on the pulley is asked, hence the magnitude is sufficient.
