Question

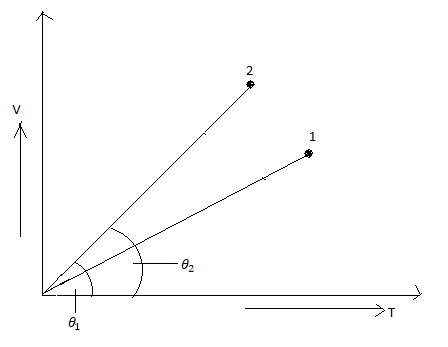

In the following V-T diagram what is the relation between ${P_1}$ and ${P_2}$:

A) ${{\text{P}}_2} = {{\text{P}}_1}$
B) ${{\text{P}}_2} > {{\text{P}}_1}$
C) ${{\text{P}}_2} < {{\text{P}}_1}$
D) Cannot be predicted

Answer 1

i)Ideal gas equation: It is the relationship between Boyle’s law, Charles law, and Avogadro’s law.
ii) Boyle’s law: This describes how the pressure of a gas tends to change as the volume of the container.
iii) Charles law: This describes how gas tends to expand when heated.
iv) Avogadro’s law: This describes the relationship between the volumes of gas to the amount of substance of gas present.

Formula used:
Ideal gas equation,${\text{PV = RT}}$,
Here$\;P =$ pressure of the gas,
$V =$ volume of the gas,
$T =$ temperature,
$R =$ universal gas constant

Complete step by step solution:
It is given that ${P_1}$and ${P_2}$ is the pressure from the graph.
Therefore, the ideal gas equation can be re-written as, $\dfrac{{\text{V}}}{{\text{T}}} = \dfrac{{\text{R}}}{{\text{P}}}$
From the given graph we see that the slope of $2\,$ is greater than the slope of$1$.
Therefore, we can write that, $\dfrac{{{{\text{V}}_2}}}{{{{\text{T}}_2}}} > \dfrac{{{{\text{V}}_1}}}{{{{\text{T}}_1}}}$
From the ideal gas equation, $\dfrac{1}{{{{\text{P}}_2}}} > \dfrac{1}{{{{\text{P}}_1}}}$
So we can write it as,
$\Rightarrow {{\text{P}}_2} < {{\text{P}}_1}$

Hence the correct option is (C).

Note:
i) By using the ideal gas equation, we can measure the temperature accurately irrespective of their masses and other physical quantities.
ii) Boyle’s law in thermodynamics explains the volume of a gas is inversely proportional to its pressure exerted by a gas at a constant temperature.
iii) Charles law in thermodynamics defines where the volume of a fixed mass of a dry gas is directly proportional to its absolute temperature.
iv) Avogadro’s law in thermodynamics where number of atoms/ molecules of a gas is directly proportional to the volume occupied by the gas at a constant temperature.
v) Calorimeter is a device used to measure the heat energy added to the system
