Question

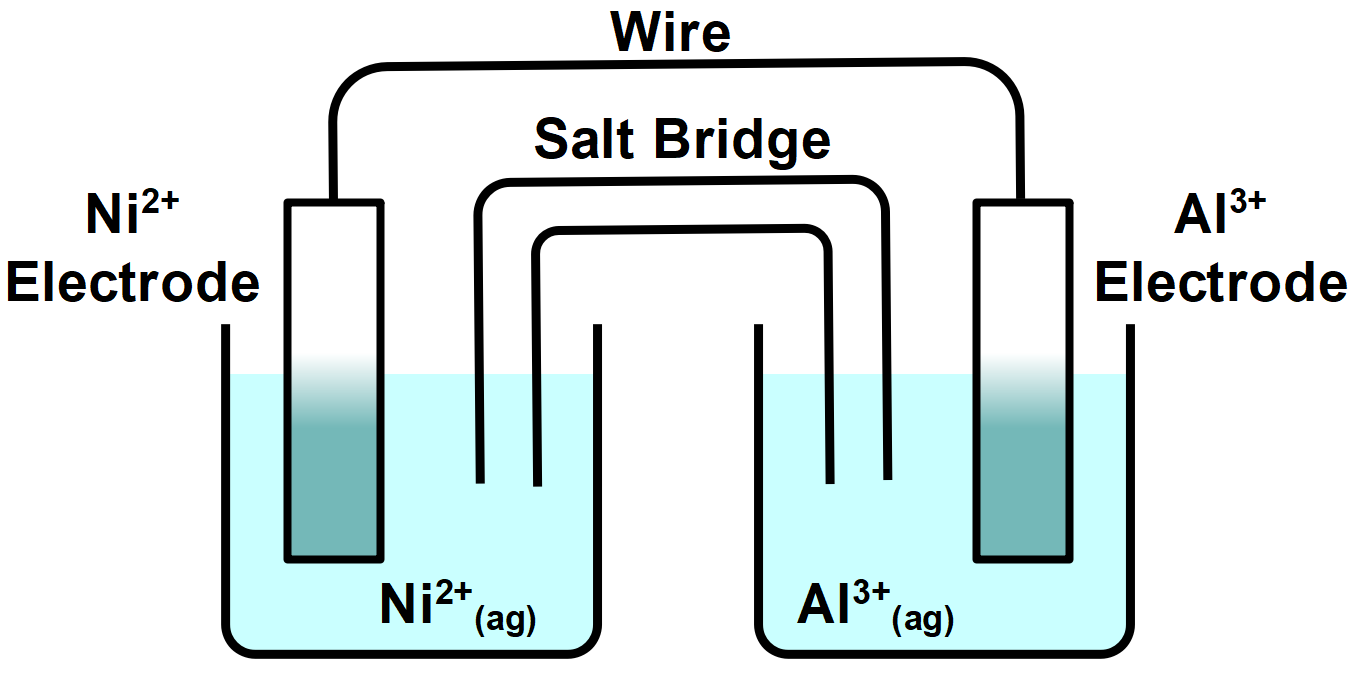

In the diagram below, what is the half reaction that occurs at the cathode?

A.$Al\to A{{l}^{3+}}+3{{e}^{-}}.$
B.$N{{i}^{2+}}+2{{e}^{-}}\to Ni.$
C.$Ni\to N{{i}^{2+}}+2{{e}^{-}}.$
D.$2A{{l}^{3+}}+6{{e}^{-}}\to 2Al.$
E.None of these.

Answer 1

We know that the electrochemical which is also called voltaic or galvanic cell is made up of two half cells. In one half-cell, the oxidation reaction takes place and in one half-cell reduction reaction takes place. Both the half-cells are connected by a salt bridge (usually made of a strong electrolyte.

Complete answer:
As we know that the electrochemistry is an important branch in physical chemistry, it deals with the study of electricity and related chemical reactions. In which electricity is generated in a reaction by the movements of electrons from one element to another, the reaction is known as redox or oxidation -reduction reaction. An electrochemical cell is a device which produces electric current from energy released by a spontaneous redox reaction.
Examples of such cells are galvanic cells, voltaic cells etc. ere we have given an electrochemical reaction, for an electrochemical reaction certain rules have to be followed to write the cell notation for a reaction. The rules are given below Here the half-cell which is described first is anode followed by the cathode half-cell. Within the half-cell, reactants are written first then the products. A single vertical line which is drawn between two chemical species used to describe that chemical species are in two different phases but are in physical contact with each other.
The double vertical line is used to represent a salt bridge or a porous membrane which is used to separate the individual half-cell. The phase of each chemical is given in the cell notation. If the electrolytes in the cells are not in standard conditions, then concentrations and pressure will be included with the phase notation. The half-reaction that occurs at the cathode is the reduction of $Ni\left( II \right)$ ions to Ni atoms. $N{{i}^{2+}}+2{{e}^{-}}\to Ni$ Thus, the gain of electrons is called reduction. Cathode is the electrode where reduction occurs. In the electrochemical series, $Al\left( III \right)$ has more negative standard reduction potential than $Ni\left( II \right).$
Therefore, correct answer is option B i.e. Al is oxidized and $Ni\left( II \right)$ is reduced.

Note:
Remember that the half-cell reaction can be an oxidation reaction or it can be a reduction reaction. In the oxidation reaction, electrons are lost and in the reduction reaction, electrons are gained. The half-cell reaction occurs in an electrochemical cell at the electrodes. At anode, oxidation reaction occurs which is known as oxidation half reaction.
