Question: In the circuit shown in the figure, the switch is closed at \(t = 0\). ![](https://www.vedantu.co...

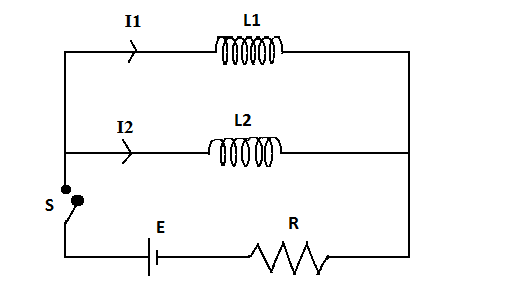

In the circuit shown in the figure, the switch is closed at t=0t = 0.

A) At t=0t = 0, I1=I2=0{I_1} = {I_2} = 0.
B) At any time tt, I1I2=L2L1\dfrac{{{I_1}}}{{{I_2}}} = \dfrac{{{L_2}}}{{{L_1}}}.
C) At any time tt, I1+I2=εR{I_1} + {I_2} = \dfrac{\varepsilon }{R}.
D) At t=t = \infty , I1{I_1} and I2{I_2} are independent of L1{L_1} and L2{L_2}.

Explanation

Solution

Using the formula for inductor current of a LR circuit and the given boundary conditions, we will form relations between inductance, current and time. These will give us the correct choices.

Formulae used: Inductor current of a LR circuit: Iind=Io((1e)tLR){I_{ind}} = {I_o}((1 - e)\dfrac{{ - tL}}{R}).
Where Iind{I_{ind}} is the inductor current and is expressed in Ampere (A)(A), Io{I_o} is the circuital current and is expressed in Ampere (A)(A), LL inductance and is expressed in Henry (H)(H), RR is the resistance value and is expressed in Ohms (Ω)(\Omega ) and tt is the time taken for the current to change and is expressed in seconds (s)(s).
Induction of an electromagnetic force: E=LdidtE = L\dfrac{{di}}{{dt}}
Where LL inductance and is expressed in Henry (H)(H), didi is the change in current and is expressed in Ampere (A)(A), dtdt is the time taken for the current to change and is expressed in seconds (s)(s) and EE is the emf induced and is expressed in Volt (V)(V). This formula will be used for inductors 11 and 22.

Complete step by step solution:
When the switch SS is closed, current flows in the circuit due to the battery connected to it. The presence of the inductance coil creates a magnetic flux, which on changing, results in the induction of an electromagnetic force. This is represented by EE and is equal to LdidtL\dfrac{{di}}{{dt}}.
The potential difference across the two parallel connected inductors will be the same at any time tt,
Therefore we can write,
L1di1dt=L2di2dt{L_1}\dfrac{{d{i_1}}}{{dt}} = {L_2}\dfrac{{d{i_2}}}{{dt}}
Where L1,L2{L_1},{L_2} are the inductances given and is expressed in Henry (H)(H), di1,di2d{i_1},d{i_2} are the change in current and is expressed in Ampere (A)(A), dtdt is the time taken for the current to change and is expressed in seconds (s)(s).
On cancelling out the common factors we establish the relation

L1L2=di2di1=I2tI2oI1tI1o L1L2=I2tI1t  \dfrac{{{L_1}}}{{{L_2}}} = \dfrac{{d{i_2}}}{{d{i_1}}} = \dfrac{{{I_{{2_t}}} - {I_2}_o}}{{{I_{{1_t}}} - {I_1}_o}} \\\ \Rightarrow \dfrac{{{L_1}}}{{{L_2}}} = \dfrac{{{I_{{2_t}}}}}{{{I_{{1_t}}}}} \\\

Rearranging this and rewriting in general terms we get,
I1I2=L2L1\dfrac{{{I_1}}}{{{I_2}}} = \dfrac{{{L_2}}}{{{L_1}}}
Now, applying the boundary condition at t=0t = 0 we get inductor current,
Iind=Io((1e)tLR)=Io((1e)0LR) Iind=0  {I_{ind}} = {I_o}((1 - e)\dfrac{{ - tL}}{R}) = {I_o}((1 - e)\dfrac{{ - 0L}}{R}) \\\ \Rightarrow {I_{ind}} = 0 \\\
Therefore at t=0t = 0, Iind=0{I_{ind}} = 0.
Now, dividing the inductor current equation by tt and applying the boundary conditions at to{t_o} \to \infty we get,
Iind=Io((1e)tL/tR/t)=Io((1e)LR/t) Iind=Io((1e)LR/)  \Rightarrow {I_{ind}} = {I_o}((1 - e)\dfrac{{ - tL/t}}{{R/t}}) = {I_o}((1 - e)\dfrac{{ - L}}{{R/t}}) \\\ \Rightarrow {I_{ind}} = {I_o}((1 - e)\dfrac{{ - L}}{{R/\infty }}) \\\
As any value by infinity is infinitesimally small, ((1e)LR/)((1 - e)\dfrac{{ - L}}{{R/\infty }}) is neglected and we get the value of Iind{I_{ind}} to be as follows,
Iind=Io{I_{ind}} = {I_o}
This shows that at to{t_o} \to \infty , the current passing through the inductor is maximum and equal to the circuital current. This proves that at that moment, the inductor current is independent of the values of inductances L1,L2{L_1},{L_2}.

In conclusion, the correct options are (A), (B) and (C).

Additional information: A LR circuit is a circuit having a combination of inductor(s) and resistor(s). In AC circuits, they reduce voltage and in DC circuits, the inductor acts as a static resistance. Therefore, the circuit given in the above problem has AC connection because a resistor is present.

Note: The first boundary condition is at t=0t = 0. Similarly, the second one is also at a particular instant of time, that is, t=tt = {t_\infty }. Calculations are made to be considered at a given point of time.
