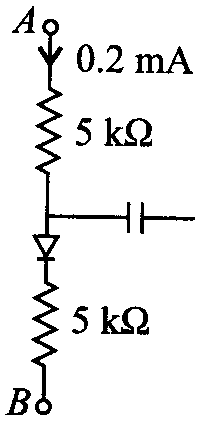

In the circuit shown in figure, if the diode forward voltage drop is 0.3V,0.3V, the voltage difference between A and B is

A

1.3V1.3V

B

2.3V2.3V

C

0

D

0.5V0.5V

Answer

2.3V2.3V

Explanation

Solution

: Let V be the potential difference between A and B, then

V0.3=(5+5)×103×(0.2×103)=2V - 0.3 = (5 + 5) \times 10^{3} \times (0.2 \times 10^{- 3}) = 2

Or V=2+0.3=2.3VV = 2 + 0.3 = 2.3V
