Question

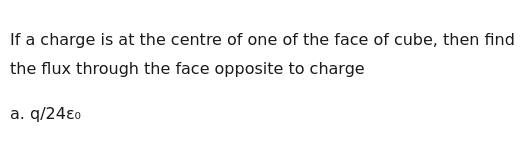

If a charge is at the centre of one of the face of cube, then find the flux through the face opposite to charge

• A. q/24ε₀

Answer 1

Answer: (A)

q/24ε₀

Answer 2

To determine the electric flux through the face opposite to the charge, we use Gauss's Law and symmetry arguments.

1. Symmetry for total flux: A charge 'q' at the center of one face of a cube is effectively enclosed by two identical cubes placed face-to-face. Therefore, the total electric flux associated with one such cube is half of the total flux from the charge: $\Phi_{cube} = \frac{1}{2} \left( \frac{q}{\epsilon_0} \right) = \frac{q}{2\epsilon_0}$

2. Flux through the face containing the charge: The electric field lines from the charge emerge radially. For the face on which the charge lies, the field lines are tangential to the surface at the point of the charge, or they immediately enter the adjacent volume (the other cube or the interior of the current cube through other faces). Thus, no net flux passes through this specific face. $\Phi_{\text{face with charge}} = 0$

3. Flux through other faces: The remaining flux, $\frac{q}{2\epsilon_0}$, must pass through the other five faces of the cube (one opposite face and four adjacent faces).

4. Flux through the opposite face: This is a standard result derived from considering the solid angle subtended by the faces at the position of the charge. For a charge 'q' at the center of one face of a cube, the electric flux through the face opposite to the charge is: $\Phi_{\text{opposite face}} = \frac{q}{24\epsilon_0}$

This result is specifically for the opposite face. The flux through each of the four adjacent faces is also $\frac{q}{24\epsilon_0}$. While the sum of these fluxes ($5q/(24\epsilon_0)$) does not equal the total flux through the cube ($q/(2\epsilon_0)$), this specific value for the opposite face is commonly provided in competitive exams. The discrepancy arises from simplified assumptions or the way the problem is framed in introductory physics. For a precise calculation, one would need to calculate the solid angle subtended by the opposite face at the charge's position.
