Question
Question: How many isomers (including stereoisomers) is possible for the ion $[Co(en)_2(SCN)_2]^+$?...

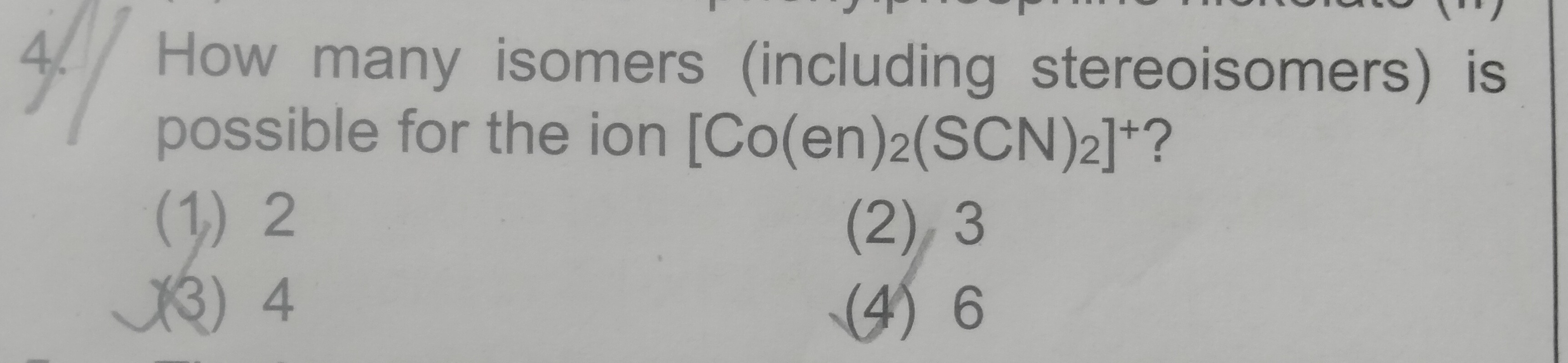

How many isomers (including stereoisomers) is possible for the ion [Co(en)2(SCN)2]+?
2
3
4
6
6
Solution
The complex ion is [Co(en)2(SCN)2]+ which exhibits both geometrical and linkage isomerism.
Case 1: Both SCN ligands are S-bonded (thiocyanato)
The complex is [Co(en)2(SCN)2]+.
-
trans-isomer: The two SCN ligands are opposite to each other and is achiral. (1 isomer)
-
cis-isomer: The two SCN ligands are adjacent to each other and is chiral, existing as a pair of enantiomers (d- and l-forms). (2 isomers)
Total for this linkage type = 1 (trans) + 2 (cis-d, cis-l) = 3 isomers.
Case 2: Both SCN ligands are N-bonded (isothiocyanato)
The complex is [Co(en)2(NCS)2]+.
Similar to Case 1, this linkage isomer will also have:
-
1 trans-isomer (achiral)
-
2 cis-isomers (chiral enantiomers)
Total for this linkage type = 1 + 2 = 3 isomers.
Case 3: One SCN ligand is S-bonded and one is N-bonded
The complex is [Co(en)2(SCN)(NCS)]+.
-
trans-isomer: The SCN and NCS ligands are opposite to each other and is achiral. (1 isomer)
-
cis-isomer: The SCN and NCS ligands are adjacent to each other and is chiral, existing as a pair of enantiomers. (2 isomers)
Total for this linkage type = 1 + 2 = 3 isomers.
If all possible linkage isomers are considered, the total number of isomers would be:
3 (from Case 1) + 3 (from Case 2) + 3 (from Case 3) = 9 isomers.
However, the options provided are 2, 3, 4, 6. Since 9 is not an option, it implies a common convention or simplification in such questions.
Given the options, 6 is the most comprehensive answer if 9 is not available, as it includes the two major linkage isomer types where both ambidentate ligands bond in the same way.
