Question: How many bonding orbitals in benzene?...

How many bonding orbitals in benzene?

Explanation

Solution

This is easily find molecular orbital theory
Molecular orbital Theory-As per MO theory, one sigma orbital is lower in energy than both of the two secluded atomic 1s1s orbitals – this lower sigma orbital is alluded to as a bonding molecular orbital. The second, 'sigma star' orbital is higher in energy than the two atomic 1s1s orbitals, and is alluded to as an antibonding molecular orbital.

Complete step by step answer:
The Answer is 1515 bonding orbitals

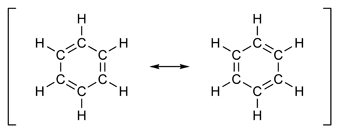

The valence bond (Lewis) structure of benzene draw as –

There are 6CCσbonds6C - C\sigma bonds , 6CHσbonds6C - H\sigma bonds, and 3C=Cπbonds3C = C\pi bonds . This makes 1616 bonding orbitals
As per molecular orbital theory, the σ molecular orbitals form from the three orbitals on every carbon atom and the 1s1s orbitals on every hydrogen atom. These 2424 atomic orbitals blend to form 2424 molecular σ\sigma orbitals. Of these, 1212 are bonding σ orbitals and 1212 are antibonding σ\sigma ^* orbitals.
The 66 atomic p orbitals on the carbon atoms blend to form 66 molecular π\pi orbitals.
There are 33 bonding π\pi orbitals and 33 antibonding π\pi ^* orbitals.
So, 1212 bonding σ orbitals plus 33 bonding π orbitals give 1515 bonding orbitals in benzene.
We see that benzene contains three bonding molecular orbitals that house the six pi electrons and three anti-bonding molecular orbitals that are higher in energy and in this manner don't contain any of the pi electrons. The most reduced in energy molecular orbital contains no nodal planes, two of the bonding molecular orbitals contain a solitary nodal plane each, two of the anti-bonding contain two nodal planes while the last contains three nodal planes

Note: It's difficult to draw a cyclic pi system with one node, however we can draw a system with one nodal plane. For benzene, the next level up has two nodal planes. Once more, there's two different ways to do it: cut through the bonds, or cut through the atoms. Once more, these are of a similar energy
