Question

How can I draw Fischer projection from Haworth?

Answer 1

Hint : A Fischer projection is a way to represent a chemical compound in 2D structure without disturbing the stereochemistry of the molecule i.e., absolute configuration of the chiral carbons whereas Haworth projection is a way to represent cyclic compounds with a three-dimensional perspective.

Complete Step By Step Answer:

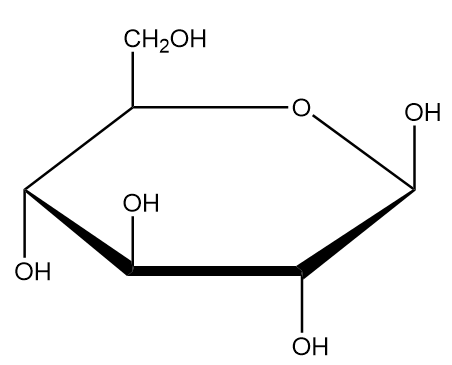

Let us consider an example of D-glucose, which we need to represent in Fisher projection. The Haworth projection of D-glucose is as follows:

The conversion of Haworth projection to Fischer projection undergoes in following steps:

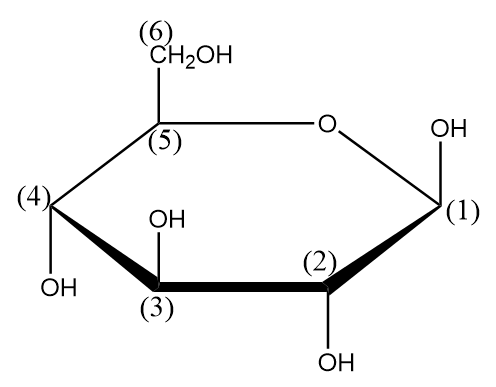

Step-1: The carbon atoms of the ring are numbered so that they can be easily identified from their positions. The numbering of ring is done as follows:

Step-2: Cleavage of the bond between oxygen and carbon-(1) takes place and a carbocation is formed. The process is shown as follows:

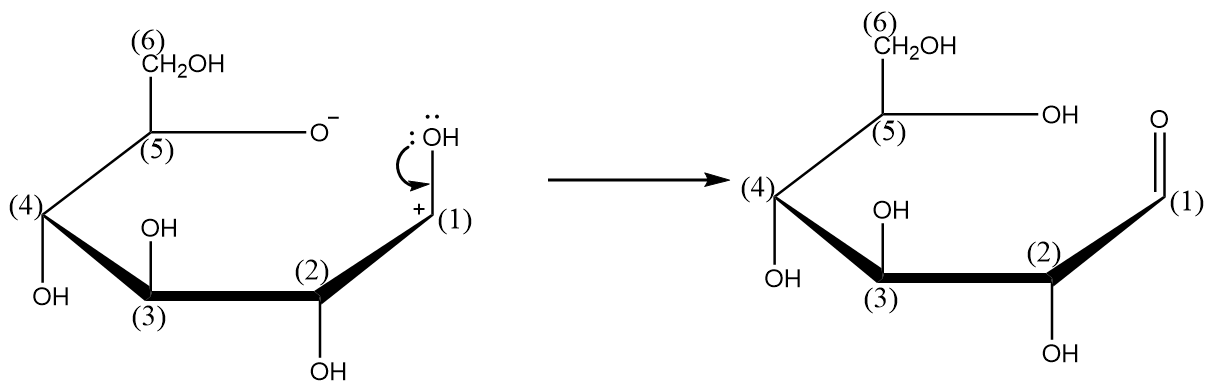

Step-3: The lone pair of electrons of oxygen atom will combine with the carbocation to form a double bond and hydrogen ion released will combine with the oxygen atom having negative charge. The process is shown as follows:

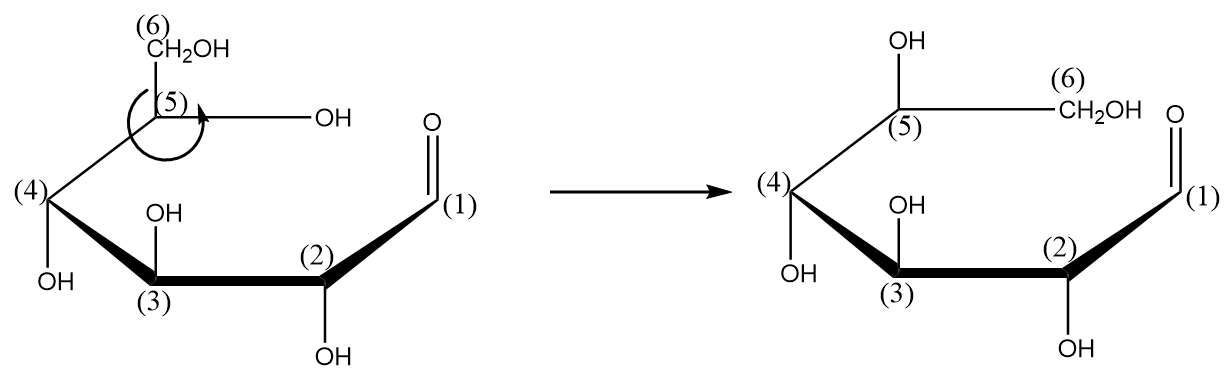

Step-4: Bonds connected with carbon-(5) are rotated in such a way that the $C{H_2}OH$ group aligns within the plane of the ring. The process is shown as follows:

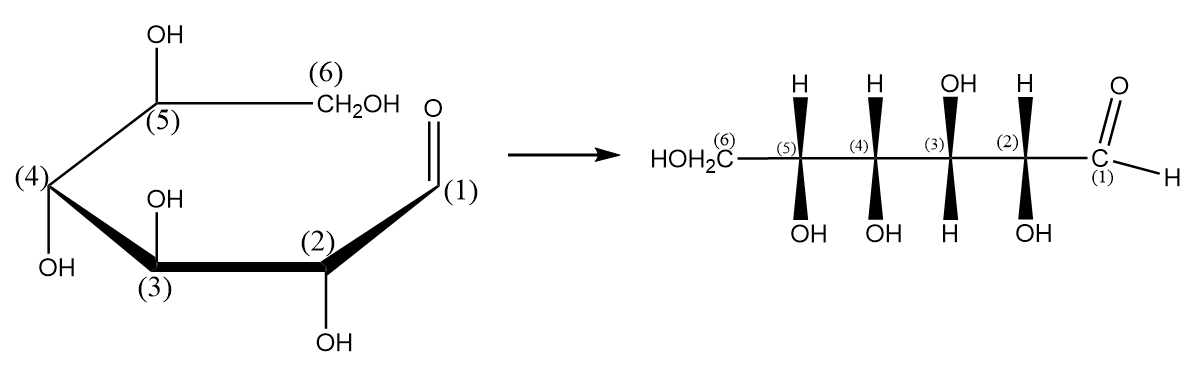

Step-5: Writing the structure of the compound in its complete expanded form as follows:

Step-6 Rotating the projection with an angle of ${90^o}$ as follows:

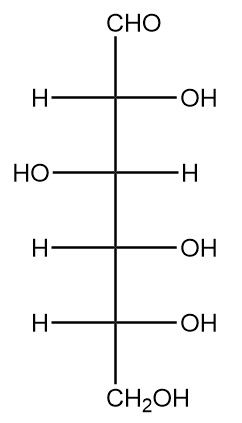

Hence, the equivalent Fischer projection for D-glucose is as follows:

Therefore, by following these general steps we can easily convert Haworth projection into the Fischer projection.

Note :
It is important to know that we can convert the Fischer projection to the Haworth projection by following the steps in reverse order. The Haworth projection is the most convenient to represent a molecule with its stereochemistry.
