Question: Find the output of ideal operational amplifier as shown in the following figure for the input of \({...

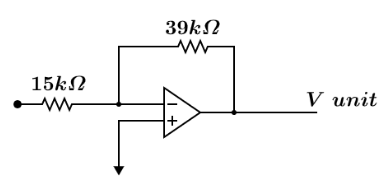

Find the output of ideal operational amplifier as shown in the following figure for the input of Vin=(120mV)dc{V_{in}} = {(120mV)_{dc}}

Explanation

Solution

In order to solve this question, we will use the definition of operational amplifier which states that an operational amplifier is an amplifier which amplifies the difference between the two terminals i.e. positive and negative. Op-Amp has input resistance, output resistance and a feedback circuit so that it can be amplified each time with a single input. There can be various types of Ideal Op-amp like it can work as differentiator, integrator, adder, subtractor, inverting and non-inverting. It is very useful in transforming and it can act as a low pass filter and high pass filter.

Complete step by step answer:
As we know, an ideal Op-Amp is one in which input resistance is ∞\infty and output resistance is 00. In which we can use concept of Virtual Ground which states that if the Op-Amp is ideal and it has feedback then V+=V−{V_ + } = {V_ - } where V+{V_ + } is positive terminal voltage and V−{V_ - } is negative terminal voltage
Using concept of Virtual ground we found that
V+=0V{V_ + } = 0V
⇒V+=V−=0V\Rightarrow {V_ + } = {V_ - } = 0V
Applying nodal analysis at node A we get
(0−Vin)15kΩ+(0−Vout)39kΩ=0\dfrac{{(0 - {V_{in}})}}{{15k\Omega }} + \dfrac{{(0 - {V_{out}})}}{{39k\Omega }} = 0
⇒Vout=−(3915)×Vin\Rightarrow {V_{out}} = - (\dfrac{{39}}{{15}}) \times {V_{in}}
⇒Vout=−(2.60×120) mV\Rightarrow {V_{out}} = - (2.60 \times 120)\,mV
∴Vout=−312 mV\therefore {V_{out}} = - 312\,mV

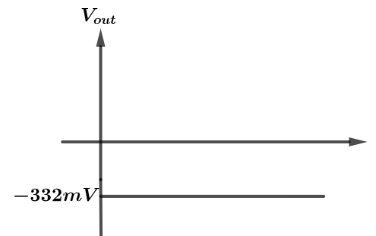

So the output is −312 mV - 312\,mV inverted means it amplifies in opposite direction as shown in diagram

Hence, the output of an ideal operational amplifier is −312 mV - 312\,mV.

Note: It should be remembered that, here we deal with an ideal operational amplifier and in ideal Op-Amp input resistance is ∞\infty so no current could enter into the op-amp. Also Virtual Ground Concept can only be used when there is feedback in circuit of Op-Amp and also Op-Amp is ideal one. It should be remembered that it is inverting Op-Amp so it amplifies in the opposite direction that is 180∘180^\circ out of phase.
