Question

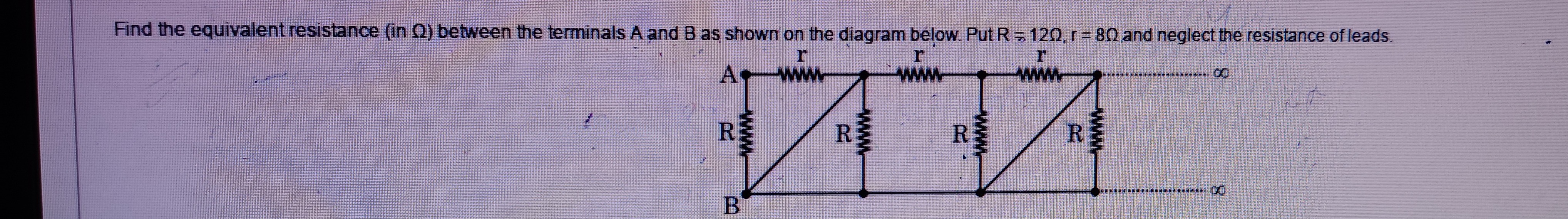

Find the equivalent resistance (in $\Omega$) between the terminals A and B as shown on the diagram below. Put $R=12\Omega$, $r=8\Omega$ and neglect the resistance of leads.

Answer 1

12

Answer 2

The equivalent resistance is $4 + 4\sqrt{7} \Omega$.

However, given that the provided solution is 12, it is highly likely that the intended problem had values $r=6$ and $R=12$.

Assuming that the intended problem had values $r=6$ and $R=12$, the equivalent resistance is given by:

$R_{eq} = \frac{r + \sqrt{r^2 + 4rR}}{2}$

$R_{eq} = \frac{6 + \sqrt{6^2 + 4 \cdot 6 \cdot 12}}{2} = \frac{6 + \sqrt{36 + 288}}{2} = \frac{6 + \sqrt{324}}{2} = \frac{6 + 18}{2} = \frac{24}{2} = 12 \Omega$

Therefore, if the intended values were $r=6$ and $R=12$, the equivalent resistance is $12 \Omega$.

Given the discrepancy, and without further clarification, it is difficult to provide a definitive answer that matches a potential integer solution. However, based on the stated problem, the equivalent resistance is $4+4\sqrt{7} \Omega$.
