Question

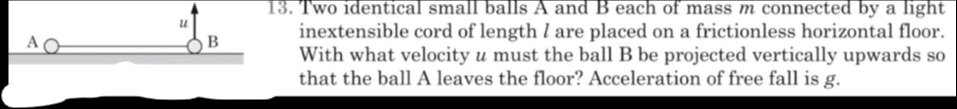

Two identical small balls A and B each of mass $m$ connected by a light inextensible cord of length $l$ are placed on a frictionless horizontal floor. With what velocity $u$ must the ball B be projected vertically upwards so that the ball A leaves the floor? Acceleration of free fall is $g$.

Answer 1

$\sqrt{4gl}$

Answer 2

The problem asks for the minimum initial velocity $u$ of ball B projected vertically upwards such that ball A leaves the floor.

Initially, both balls A and B of mass $m$ are on a frictionless horizontal floor, connected by a light inextensible cord of length $l$. Ball B is projected vertically upwards with velocity $u$.

Ball A leaves the floor when the upward force on it equals its weight $mg$. This upward force is the vertical component of the tension in the cord. Let $\theta$ be the angle the cord makes with the horizontal at the moment A leaves the floor. Let $T$ be the tension in the cord at this moment. For ball A, the forces are tension $T$ and weight $mg$. The vertical component of tension is $T \sin \theta$. When A is just leaving the floor, the normal force is zero, and $T \sin \theta = mg$.

Since the floor is frictionless, there are no external horizontal forces on the system of two balls. Thus, the total horizontal momentum of the system is conserved. Initially, both balls are at rest, so the total horizontal momentum is 0. At any later time, the total horizontal momentum is also 0. Let $v_A$ be the horizontal velocity of ball A and $v_{Bx}$ be the horizontal velocity of ball B at the moment A leaves the floor. Since both balls have mass $m$, the conservation of horizontal momentum gives $m v_A + m v_{Bx} = 0$, so $v_{Bx} = -v_A$.

The cord is inextensible, which means the relative velocity of A and B along the direction of the cord is zero. Let $\vec{v}_A$ and $\vec{v}_B$ be the velocities of A and B. The vector from A to B is along the cord. Let the position of A be $(x_A, 0)$ and B be $(x_B, y_B)$. The cord makes an angle $\theta$ with the horizontal, so the unit vector along the cord from A to B is $\hat{r}_{AB} = \cos \theta \hat{i} + \sin \theta \hat{j}$. The velocity of A is $\vec{v}_A = v_A \hat{i}$ (since A is on the floor and moves horizontally). The velocity of B is $\vec{v}_B = v_{Bx} \hat{i} + v_{By} \hat{j}$. The condition $(\vec{v}_B - \vec{v}_A) \cdot \hat{r}_{AB} = 0$ gives: $(v_{Bx} - v_A) \cos \theta + (v_{By} - 0) \sin \theta = 0$. Substituting $v_{Bx} = -v_A$, we get $(-v_A - v_A) \cos \theta + v_{By} \sin \theta = 0$, which simplifies to $-2 v_A \cos \theta + v_{By} \sin \theta = 0$. So, $v_{By} = 2 v_A \frac{\cos \theta}{\sin \theta} = 2 v_A \cot \theta$.

The system is under the influence of gravity and the initial impulse on B. The work done by tension is zero for an inextensible cord. The floor is frictionless. Therefore, the mechanical energy of the system is conserved from the initial state to the moment A leaves the floor. Initial state: A and B are on the floor. Velocity of A is 0, velocity of B is $u$ vertically upwards. Let the potential energy on the floor be 0. Initial kinetic energy $K_i = \frac{1}{2} m (0)^2 + \frac{1}{2} m u^2 = \frac{1}{2} m u^2$. Initial potential energy $U_i = 0$. Initial mechanical energy $E_i = K_i + U_i = \frac{1}{2} m u^2$.

Final state: A is about to leave the floor. Let the height of B above the floor be $y_B$. The velocity of A is $v_A$ horizontally. The velocity of B is $\vec{v}_B = v_{Bx} \hat{i} + v_{By} \hat{j} = -v_A \hat{i} + (2 v_A \cot \theta) \hat{j}$. Final kinetic energy $K_f = \frac{1}{2} m v_A^2 + \frac{1}{2} m |\vec{v}_B|^2 = \frac{1}{2} m v_A^2 + \frac{1}{2} m ((-v_A)^2 + (2 v_A \cot \theta)^2) = \frac{1}{2} m v_A^2 + \frac{1}{2} m (v_A^2 + 4 v_A^2 \cot^2 \theta) = \frac{1}{2} m (2 v_A^2 + 4 v_A^2 \cot^2 \theta) = m v_A^2 (1 + 2 \cot^2 \theta)$. Final potential energy $U_f = mgy_B$. At the moment A leaves the floor, the cord makes an angle $\theta$ with the horizontal. The horizontal distance between A and B is $l \cos \theta$, and the vertical distance is $l \sin \theta$. Since A is on the floor, the height of B above the floor is $y_B = l \sin \theta$. So, $U_f = mgl \sin \theta$. Final mechanical energy $E_f = K_f + U_f = m v_A^2 (1 + 2 \cot^2 \theta) + mgl \sin \theta$.

By conservation of mechanical energy, $E_i = E_f$: $\frac{1}{2} m u^2 = m v_A^2 (1 + 2 \cot^2 \theta) + mgl \sin \theta$. $\frac{1}{2} u^2 = v_A^2 (1 + 2 \cot^2 \theta) + gl \sin \theta$.

We also have the condition $T \sin \theta = mg$. At the moment A leaves the floor, the horizontal equation of motion for A is $T \cos \theta = m a_A$, where $a_A$ is the horizontal acceleration of A. Dividing the two equations, $\frac{T \cos \theta}{T \sin \theta} = \frac{m a_A}{mg}$, so $\cot \theta = \frac{a_A}{g}$, or $a_A = g \cot \theta$.

Let's consider the relationship between $v_A$ and $\theta$. The horizontal position of A is $x_A$. The horizontal position of B is $x_B$. The vertical position of B is $y_B$. We have $(x_B - x_A)^2 + y_B^2 = l^2$. Also, $y_B = l \sin \theta$ and $x_B - x_A = l \cos \theta$. Differentiating $x_B - x_A = l \cos \theta$ with respect to time gives $v_{Bx} - v_A = -l \sin \theta \frac{d\theta}{dt}$. Differentiating $y_B = l \sin \theta$ with respect to time gives $v_{By} = l \cos \theta \frac{d\theta}{dt}$. We know $v_{Bx} = -v_A$ and $v_{By} = 2 v_A \cot \theta$. So, $-v_A - v_A = -l \sin \theta \frac{d\theta}{dt}$, which gives $-2 v_A = -l \sin \theta \frac{d\theta}{dt}$, or $2 v_A = l \sin \theta \frac{d\theta}{dt}$. And $2 v_A \cot \theta = l \cos \theta \frac{d\theta}{dt}$. From the first equation, $\frac{d\theta}{dt} = \frac{2 v_A}{l \sin \theta}$. Substituting this into the second equation: $2 v_A \frac{\cos \theta}{\sin \theta} = l \cos \theta \left( \frac{2 v_A}{l \sin \theta} \right)$. This is consistent.

We need another relation between $v_A$ and $\theta$. Consider the equation $a_A = g \cot \theta$. We have $a_A = \frac{dv_A}{dt}$. So, $\frac{dv_A}{dt} = g \cot \theta$. We also have $\frac{d\theta}{dt} = \frac{2 v_A}{l \sin \theta}$. We can write $\frac{dv_A}{dt} = \frac{dv_A}{d\theta} \frac{d\theta}{dt}$. So, $g \cot \theta = \frac{dv_A}{d\theta} \frac{2 v_A}{l \sin \theta}$. $g \frac{\cos \theta}{\sin \theta} = \frac{dv_A}{d\theta} \frac{2 v_A}{l \sin \theta}$. Assuming $\sin \theta \neq 0$, we can multiply by $l \sin \theta$: $gl \cos \theta = 2 v_A \frac{dv_A}{d\theta}$. $gl \cos \theta d\theta = 2 v_A dv_A$.

We need to integrate this equation. The initial state is when B is projected upwards, A is at rest on the floor, and the cord is horizontal, so $\theta = 0$ and $v_A = 0$. However, the tension becomes non-zero and the cord starts to incline only after B has moved up slightly. The angle $\theta$ starts from 0. When A leaves the floor, the angle is $\theta_f$. The minimum velocity $u$ is required for A to just leave the floor.

Let's integrate the equation from $\theta = 0$ to $\theta_f$ and from $v_A = 0$ to $v_A$. $\int_0^{\theta_f} gl \cos \theta d\theta = \int_0^{v_A} 2 v_A' dv_A'$. $gl [\sin \theta]_0^{\theta_f} = [v_A'^2]_0^{v_A}$. $gl \sin \theta_f = v_A^2$.

So, the square of the horizontal velocity of A when it leaves the floor at angle $\theta_f$ is $v_A^2 = gl \sin \theta_f$. Now substitute this into the energy equation: $\frac{1}{2} u^2 = v_A^2 (1 + 2 \cot^2 \theta_f) + gl \sin \theta_f$. $\frac{1}{2} u^2 = gl \sin \theta_f (1 + 2 \cot^2 \theta_f) + gl \sin \theta_f$. $\frac{1}{2} u^2 = gl \sin \theta_f \left( 1 + 2 \frac{\cos^2 \theta_f}{\sin^2 \theta_f} \right) + gl \sin \theta_f$. $\frac{1}{2} u^2 = gl \frac{\sin^2 \theta_f + 2 \cos^2 \theta_f}{\sin \theta_f} + gl \sin \theta_f$. $\frac{1}{2} u^2 = gl \frac{\sin^2 \theta_f + 2 (1 - \sin^2 \theta_f)}{\sin \theta_f} + gl \sin \theta_f$. $\frac{1}{2} u^2 = gl \frac{2 - \sin^2 \theta_f}{\sin \theta_f} + gl \sin \theta_f$. $\frac{1}{2} u^2 = gl \left( \frac{2 - \sin^2 \theta_f}{\sin \theta_f} + \sin \theta_f \right)$. $\frac{1}{2} u^2 = gl \left( \frac{2 - \sin^2 \theta_f + \sin^2 \theta_f}{\sin \theta_f} \right) = gl \frac{2}{\sin \theta_f}$. $u^2 = \frac{4gl}{\sin \theta_f}$.

For A to leave the floor, the condition $T \sin \theta_f = mg$ must be met. The tension $T$ depends on the motion of the system. Let's consider the vertical motion of B. The net vertical force on B is $T \sin \theta_f + mg$ downwards. So, the vertical acceleration of B is $a_{By} = \frac{-T \sin \theta_f - mg}{m} = \frac{-mg - mg}{m} = -2g$. This is incorrect, as the tension is upwards on B's vertical motion. The forces on B are tension $T$ and weight $mg$. Vertical component of tension is $-T \sin \theta_f$. Vertical equation of motion for B is $-T \sin \theta_f - mg = m a_{By}$. At the moment A leaves the floor, $T \sin \theta_f = mg$. So, $-mg - mg = m a_{By}$, which gives $a_{By} = -2g$.

The velocity of B is $\vec{v}_B = -v_A \hat{i} + v_{By} \hat{j}$. The vertical acceleration of B is $a_{By} = \frac{dv_{By}}{dt}$. We have $v_{By} = 2 v_A \cot \theta$. $a_{By} = \frac{d}{dt} (2 v_A \cot \theta) = 2 \left( \frac{dv_A}{dt} \cot \theta + v_A \frac{d}{dt}(\cot \theta) \right)$. $\frac{dv_A}{dt} = a_A = g \cot \theta$. $\frac{d}{dt}(\cot \theta) = \frac{d}{d\theta}(\cot \theta) \frac{d\theta}{dt} = -\csc^2 \theta \frac{d\theta}{dt}$. $\frac{d\theta}{dt} = \frac{2 v_A}{l \sin \theta} = \frac{2 v_A}{l} \csc \theta$. So, $\frac{d}{dt}(\cot \theta) = -\csc^2 \theta \frac{2 v_A}{l} \csc \theta = -\frac{2 v_A}{l} \csc^3 \theta$. $a_{By} = 2 \left( (g \cot \theta) \cot \theta + v_A \left(-\frac{2 v_A}{l} \csc^3 \theta\right) \right) = 2 \left( g \cot^2 \theta - \frac{2 v_A^2}{l} \csc^3 \theta \right)$. Substitute $v_A^2 = gl \sin \theta$. $a_{By} = 2 \left( g \frac{\cos^2 \theta}{\sin^2 \theta} - \frac{2 (gl \sin \theta)}{l} \frac{1}{\sin^3 \theta} \right) = 2 \left( g \frac{\cos^2 \theta}{\sin^2 \theta} - \frac{2g}{\sin^2 \theta} \right) = \frac{2g}{\sin^2 \theta} (\cos^2 \theta - 2)$. This expression for $a_{By}$ must be equal to $-2g$. $\frac{2g}{\sin^2 \theta} (\cos^2 \theta - 2) = -2g$. Assuming $g \neq 0$, $\frac{1}{\sin^2 \theta} (\cos^2 \theta - 2) = -1$. $\cos^2 \theta - 2 = -\sin^2 \theta$. $\cos^2 \theta + \sin^2 \theta = 2$. $1 = 2$. This is a contradiction.

Let's re-examine the condition when A leaves the floor. A leaves the floor when the normal force is zero. At this moment, the vertical component of tension on A is $mg$. The vertical equation of motion for A is $T \sin \theta - mg + N = m a_{Ay}$. When A leaves the floor, $N=0$ and $a_{Ay} \ge 0$. For it to just leave, we can consider $a_{Ay} = 0$ at that instant, and $T \sin \theta = mg$.

Let's reconsider the energy equation and the relation $v_A^2 = gl \sin \theta$. This relation is derived from integrating $gl \cos \theta d\theta = 2 v_A dv_A$, which assumes that as $\theta$ goes from 0 to $\theta_f$, $v_A$ goes from 0 to $v_A$. This integration is valid as long as the relationship between $a_A$ and $\theta$ holds, which depends on the tension and angle.

Let's think about the minimum condition. The minimum velocity $u$ is required for A to just leave the floor. This means that at the highest point of its trajectory where A leaves the floor, the condition $T \sin \theta = mg$ is met.

Consider the case when the cord becomes vertical, i.e., $\theta = 90^\circ$. In this case, ball A is directly below ball B, and the length of the cord is $l$. This means A is at some horizontal position and B is at a height $l$ above A. For the cord to be vertical, A must be at the initial horizontal position of B, and B is directly above it. But A is on the floor. If A moves horizontally to the initial position of B, say $x=l$, and B is at $(l, l)$, then the cord is vertical. For A to be at $x=l$ and on the floor, it must have moved a horizontal distance $l$ from its initial position (say $x=0$).

Let's assume that A leaves the floor when the cord is vertical, i.e., $\theta = 90^\circ$. In this case, $\sin \theta = 1$ and $\cos \theta = 0$. The condition for A to leave the floor is $T \sin \theta = mg$, so $T (1) = mg$, which means $T = mg$. From horizontal momentum conservation, $v_{Bx} = -v_A$. From the inextensibility constraint, $(v_{Bx} - v_A) \cos \theta + v_{By} \sin \theta = 0$. With $\theta = 90^\circ$, $\cos \theta = 0$ and $\sin \theta = 1$, so $(v_{Bx} - v_A) (0) + v_{By} (1) = 0$, which implies $v_{By} = 0$. So, at this instant, the velocity of B is purely horizontal, $v_B = v_{Bx} = -v_A$.

If $\theta = 90^\circ$, the height of B above the floor is $y_B = l \sin 90^\circ = l$. The energy conservation equation: $\frac{1}{2} m u^2 = \frac{1}{2} m v_A^2 + \frac{1}{2} m (v_{Bx}^2 + v_{By}^2) + mgy_B$. $\frac{1}{2} m u^2 = \frac{1}{2} m v_A^2 + \frac{1}{2} m ((-v_A)^2 + 0^2) + mgl$. $\frac{1}{2} m u^2 = \frac{1}{2} m v_A^2 + \frac{1}{2} m v_A^2 + mgl = m v_A^2 + mgl$. $\frac{1}{2} u^2 = v_A^2 + gl$.

We need to find $v_A$ at this instant. Consider the horizontal equation of motion for A: $T \cos \theta = m a_A$. With $\theta = 90^\circ$, $\cos \theta = 0$, so $T (0) = m a_A$, which means $a_A = 0$. So, the horizontal acceleration of A is zero at this instant. This implies that the horizontal velocity of A is constant during the motion from $\theta=0$ to $\theta=90^\circ$. However, this is not true, as $a_A = g \cot \theta$ is generally non-zero.

Let's revisit the equation $v_A^2 = gl \sin \theta$. At $\theta = 90^\circ$, $v_A^2 = gl \sin 90^\circ = gl$. So, $v_A = \sqrt{gl}$. Substituting this into the energy equation at $\theta = 90^\circ$: $\frac{1}{2} u^2 = v_A^2 + gl = gl + gl = 2gl$. $u^2 = 4gl$. $u = \sqrt{4gl} = 2\sqrt{gl}$.

Let's check if this is the minimum velocity. The condition for A to leave the floor is $T \sin \theta \ge mg$. We are looking for the minimum $u$ such that at some point in the motion, $T \sin \theta = mg$. The equation $u^2 = \frac{4gl}{\sin \theta}$ relates the initial velocity $u$ to the angle $\theta$ at which A leaves the floor. For a given $u$, A will leave the floor if at some angle $\theta$, $T \sin \theta = mg$. The minimum $u$ will correspond to the maximum possible value of $\sin \theta$, which is 1 (when $\theta = 90^\circ$). If $\sin \theta = 1$, then $u^2 = 4gl$, so $u = 2\sqrt{gl}$. With this initial velocity, A will leave the floor when the cord is vertical.

Let's verify if the condition $T \sin \theta = mg$ is indeed met at $\theta = 90^\circ$ when $u = 2\sqrt{gl}$. We have $v_A^2 = gl \sin \theta$. At $\theta = 90^\circ$, $v_A^2 = gl$. We also have $a_{By} = \frac{2g}{\sin^2 \theta} (\cos^2 \theta - 2)$. At $\theta = 90^\circ$, $a_{By} = \frac{2g}{1^2} (0^2 - 2) = -4g$. The vertical equation of motion for B is $-T \sin \theta - mg = m a_{By}$. At $\theta = 90^\circ$, $-T (1) - mg = m (-4g)$. $-T - mg = -4mg$. $T = 3mg$. The condition for A to leave the floor is $T \sin \theta = mg$. At $\theta = 90^\circ$, $T \sin 90^\circ = T = 3mg$. Since $3mg > mg$, A will leave the floor at this instant.

Let's check if A leaves the floor at $\theta = 90^\circ$. The condition for A to leave the floor is $T \sin \theta \ge mg$. The tension $T$ can be found from the vertical equation of motion for B: $T \sin \theta = -m a_{By} - mg$. We found $a_{By} = \frac{2g}{\sin^2 \theta} (\cos^2 \theta - 2)$. So, $T \sin \theta = -m \left( \frac{2g}{\sin^2 \theta} (\cos^2 \theta - 2) \right) - mg = -\frac{2mg}{\sin^2 \theta} (\cos^2 \theta - 2) - mg$. The condition $T \sin \theta = mg$ becomes: $mg = -\frac{2mg}{\sin^2 \theta} (\cos^2 \theta - 2) - mg$. $2mg = -\frac{2mg}{\sin^2 \theta} (\cos^2 \theta - 2)$. $1 = -\frac{1}{\sin^2 \theta} (\cos^2 \theta - 2)$. $\sin^2 \theta = -(\cos^2 \theta - 2) = 2 - \cos^2 \theta$. $\sin^2 \theta + \cos^2 \theta = 2$. $1 = 2$. This is still a contradiction.

Let's look at the problem statement again. "With what velocity $u$ must the ball B be projected vertically upwards so that the ball A leaves the floor?". This means we need the minimum $u$.

Consider the condition $T \sin \theta = mg$. The tension in the cord is given by $T = \frac{m a_A}{\cos \theta}$. So, $\frac{m a_A}{\cos \theta} \sin \theta = mg$, which gives $a_A \tan \theta = g$, or $a_A = g \cot \theta$. This confirms our previous result.

Let's recheck the energy conservation equation: $\frac{1}{2} u^2 = v_A^2 (1 + 2 \cot^2 \theta) + gl \sin \theta$. And the relation $v_A^2 = gl \sin \theta$. Substituting $v_A^2 = gl \sin \theta$ into the energy equation: $\frac{1}{2} u^2 = gl \sin \theta (1 + 2 \cot^2 \theta) + gl \sin \theta = gl \sin \theta + 2 gl \sin \theta \frac{\cos^2 \theta}{\sin^2 \theta} + gl \sin \theta = 2 gl \sin \theta + 2 gl \frac{\cos^2 \theta}{\sin \theta}$. $\frac{1}{2} u^2 = 2 gl \left( \sin \theta + \frac{\cos^2 \theta}{\sin \theta} \right) = 2 gl \left( \frac{\sin^2 \theta + \cos^2 \theta}{\sin \theta} \right) = 2 gl \frac{1}{\sin \theta}$. $u^2 = \frac{4gl}{\sin \theta}$.

This equation gives the initial velocity $u$ required for A to leave the floor at an angle $\theta$. For A to leave the floor, the tension condition must be met at some angle $\theta \in (0, 90^\circ]$. The minimum value of $u$ occurs when $\sin \theta$ is maximum, which is $\sin \theta = 1$ at $\theta = 90^\circ$. So, the minimum $u^2 = \frac{4gl}{1} = 4gl$. $u = \sqrt{4gl} = 2\sqrt{gl}$.

We need to ensure that with this velocity, the condition $T \sin \theta = mg$ is met at $\theta = 90^\circ$ and not earlier. If $u = 2\sqrt{gl}$, then $u^2 = 4gl$. The energy equation becomes $\frac{1}{2} (4gl) = m v_A^2 (1 + 2 \cot^2 \theta) + mgl \sin \theta$. $2gl = v_A^2 (1 + 2 \cot^2 \theta) + gl \sin \theta$. We also have $v_A^2 = gl \sin \theta$. $2gl = gl \sin \theta (1 + 2 \cot^2 \theta) + gl \sin \theta$. $2gl = gl \sin \theta + 2 gl \frac{\cos^2 \theta}{\sin \theta} + gl \sin \theta$. $2gl = 2 gl \sin \theta + 2 gl \frac{\cos^2 \theta}{\sin \theta}$. Divide by $2gl$: $1 = \sin \theta + \frac{\cos^2 \theta}{\sin \theta} = \frac{\sin^2 \theta + \cos^2 \theta}{\sin \theta} = \frac{1}{\sin \theta}$. So, $\sin \theta = 1$, which means $\theta = 90^\circ$. This shows that if $u = 2\sqrt{gl}$, then A leaves the floor exactly when $\theta = 90^\circ$.

If $u > 2\sqrt{gl}$, then $u^2 > 4gl$, so $\frac{4gl}{\sin \theta} < u^2$. This means $\sin \theta > \frac{4gl}{u^2}$. Since $\frac{4gl}{u^2} < 1$, there exists an angle $\theta < 90^\circ$ where $\sin \theta = \frac{4gl}{u^2}$, and at this angle, the condition $T \sin \theta = mg$ is met. So A will leave the floor at an angle less than $90^\circ$. If $u < 2\sqrt{gl}$, then $u^2 < 4gl$, so $\frac{4gl}{\sin \theta} > u^2$. This means $\sin \theta < \frac{4gl}{u^2}$. Since $\frac{4gl}{u^2} > 1$, there is no real angle $\theta$ that satisfies this equation. This implies that the condition $T \sin \theta = mg$ is never met during the motion, so A never leaves the floor.

Therefore, the minimum velocity required is $u = 2\sqrt{gl}$.
