Question

Draw Thevenin’s equivalent circuit and find the voltage across $R_L$, for the given circuit:

Answer 1

According to Thevenin’s theorem, we can reduce any linear circuit, to an equivalent circuit, such that there exist only one voltage and a series resistance with the given load resistance, this new and simplified circuit is called the Thevenin’s equivalent circuit. Thevenin’s theorem can be used to simplify any complex circuit as well.

Formula used:
$V=IR$

Complete step by step answer:
Clearly the given circuit is a linear circuit, which consists of only resistance and voltages.

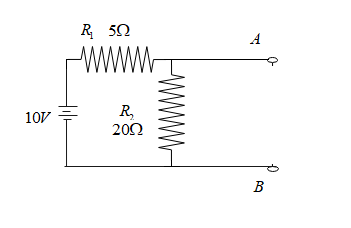

To reduce the given circuit into Thevenin’s equivalent circuit, we must first remove the load resistance and calculate the net resistance in the circuit, then the figure looks like this;

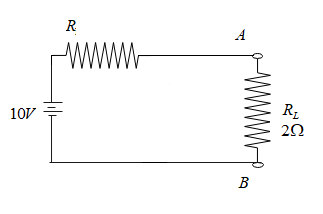

Clearly, $R_1$ and $R_2$are in parallel , then the net resistance $\dfrac{1}{R}=\dfrac{1}{R_1}+\dfrac{1}{R_2}=\dfrac{1}{5}+\dfrac{1}{20}=\dfrac{4+1}{20}=\dfrac{5}{20}=4\Omega$, then the Thevenin’s equivalent circuit, will look as follows:

Then the current in the circuit, is given from Ohm’s law as $V=IR_{net}$
Since the load is in series with the resultant of the parallel circuit, we have, $R_{net}=4+2=6\Omega$
Thus, the current in the circuit is given as , $I=\dfrac{V}{R_{net}}=\dfrac{10}{6}=1.66A$
Then the voltage across the load resistance is given as $V_L=IR_L=1.66\times 2=3.33V$

Hence the voltage across the load resistance is $3.33\;V$

Note: A circuit is said to be linear if it contains electrical components like the resistor, inductor and a capacitor, which are passive in nature. However, a circuit is said to be non-linear if it contains active components like semiconductors. Thevenin’s theorem is applicable only to linear circuits.
Here, we have only one source, but if there are multiple sources, then the net of the source is taken into account.
