Question: Define the term drift velocity of charge carriers in a conductor and write its relationship with the...
Define the term drift velocity of charge carriers in a conductor and write its relationship with the current flowing through it.
Solution
Drift velocity by the name itself suggests a velocity with which a particle is drifting in a certain direction. The velocity of electrons or particles depends upon the movement of particles. It is directly proportional to the current in the circuit.
Complete step-by-step answer:
For example, if we take up the case of an electron it is easier to understand. In normal conditions when no electrical potential is applied across a piece of wire, all the electrons move in random directions and in effect giving zero average velocity.
Let
μ= mobility of charge carriers
vd= Drift velocity
τ= Relaxation time
q= Charge on charge carrier
Electric field
m= Mass charge carrier.
Then, the drift velocity is given as-
Also, the relation between the drift velocity and electron mobility is given as
μ=Evd

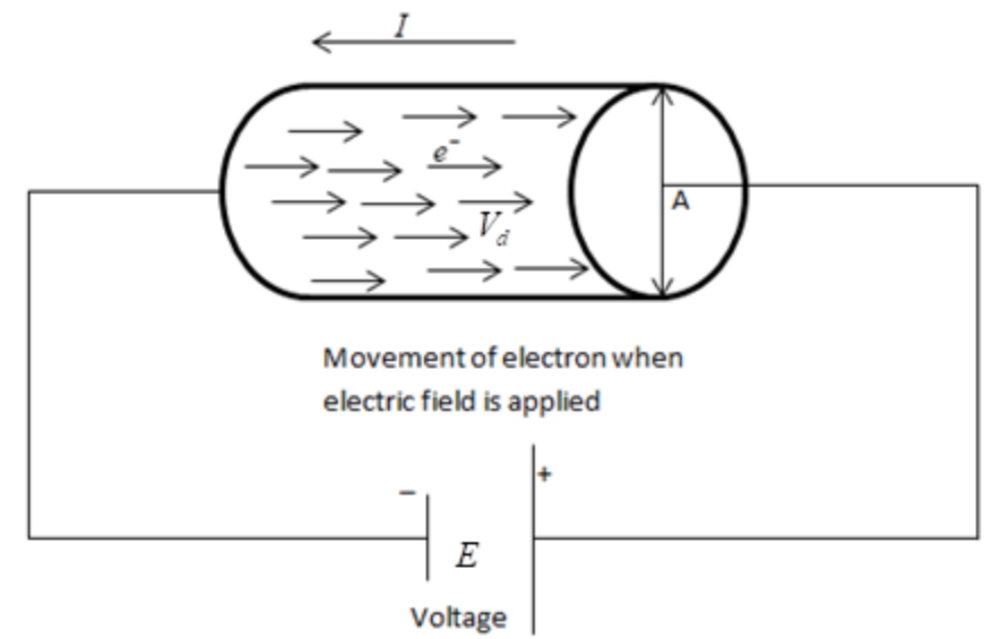

So now when we apply a potential to the piece of wire, still the electrons move in totally random directions but they have an added force acting on them due to the electric field applied which causes them to “drift” towards the side of the wire which is at a higher potential. So the net effect of this electric potential is that still the electrons move in random directions but now they also slowly move towards the higher potential side.
As we know the relation between the drift velocity and the current is given by
I=−neAvd
Where I is the current, e is the electron, n is the number of charge, A is the area of cross-section and V is the drift velocity
The average velocity of the electrons is known as “Drift Velocity”.
Note: Drift velocity of electrons varies from one material to another , though it may seem as it is constant velocity at which electrons move under influence of electric field inside a conductor , whereas it is average velocity of accelerating electrons , which constantly collide with fellow atoms .
