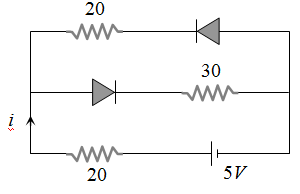

Question: Current in the circuit will be <img src="https://cdn.pureessence.tech/canvas_558.png?top_left_x=300...

Current in the circuit will be

A

540A\frac{5}{40}A

B

550A\frac{5}{50}A

C

510A\frac{5}{10}A

D

520A\frac{5}{20}A

Answer

550A\frac{5}{50}A

Explanation

Solution

The diode in lower branch is forward biased and diode in upper branch is reverse biased

i=520+30=550Ai = \frac{5}{20 + 30} = \frac{5}{50}A
