Question

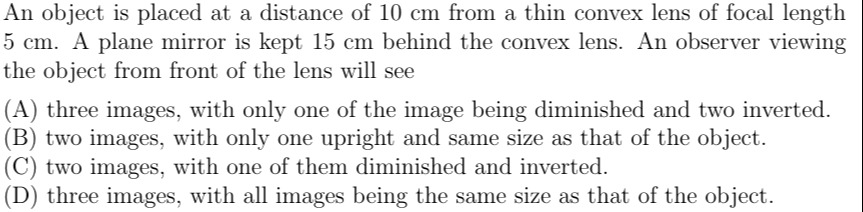

An object is placed at a distance of 10 cm from a thin convex lens of focal length 5 cm. A plane mirror is kept 15 cm behind the convex lens. An observer viewing the object from front of the lens will see

• A. three images, with only one of the image being diminished and two inverted.
• B. two images, with only one upright and same size as that of the object.
• C. two images, with one of them diminished and inverted.
• D. three images, with all images being the same size as that of the object.

Answer 1

Answer: (A)

three images, with only one of the image being diminished and two inverted.

Answer 2

Let's analyze the image formation step-by-step for an observer viewing from the front of the lens (i.e., on the same side as the object).

1. Image formation by the convex lens (first pass):

The object (O) is placed at a distance $u_1 = -10$ cm from the convex lens.
The focal length of the convex lens is $f = +5$ cm.
Using the lens formula:

$\frac{1}{v_1} - \frac{1}{u_1} = \frac{1}{f}$

$\frac{1}{v_1} - \frac{1}{(-10)} = \frac{1}{5}$

$\frac{1}{v_1} = \frac{1}{5} - \frac{1}{10} = \frac{2-1}{10} = \frac{1}{10}$

$v_1 = +10$ cm

This means the first image ($I_1$) is formed 10 cm to the right of the lens (real image).
Magnification $m_1 = \frac{v_1}{u_1} = \frac{10}{-10} = -1$.
So, $I_1$ is real, inverted, and the same size as the object.

2. Image formation by the plane mirror:

The plane mirror (M) is kept 15 cm behind the convex lens.
The image $I_1$ is formed 10 cm behind the lens.
The distance of $I_1$ from the mirror = (Distance of mirror from lens) - (Distance of $I_1$ from lens) = $15 \text{ cm} - 10 \text{ cm} = 5 \text{ cm}$.
$I_1$ acts as a real object for the plane mirror, located 5 cm in front of the mirror.
A plane mirror forms a virtual image ($I_2$) at the same distance behind the mirror as the object is in front.
So, $I_2$ is formed 5 cm behind the plane mirror.
The position of $I_2$ relative to the lens = (Distance of mirror from lens) + (Distance of $I_2$ from mirror) = $15 \text{ cm} + 5 \text{ cm} = 20 \text{ cm}$.
So, $I_2$ is formed 20 cm to the right of the lens.
A plane mirror produces an image that is erect relative to its object and of the same size.
Since $I_1$ was inverted relative to the original object, $I_2$ (which is erect relative to $I_1$) will also be inverted relative to the original object.
Overall magnification up to $I_2$ = $m_1 \times m_{mirror} = (-1) \times (+1) = -1$.
So, $I_2$ is virtual, inverted, and the same size as the object.

3. Image formation by the convex lens (second pass):

The light rays from the mirror are reflected back towards the lens. The virtual image $I_2$ (at 20 cm to the right of the lens) acts as a virtual object for the lens when light travels from right to left.
For the lens, the object distance for this second pass is $u_2 = +(20)$ cm (since it's a virtual object located to the right of the lens, and light is coming from the right).
Using the lens formula again:

$\frac{1}{v_2} - \frac{1}{u_2} = \frac{1}{f}$

$\frac{1}{v_2} - \frac{1}{(+20)} = \frac{1}{5}$

$\frac{1}{v_2} = \frac{1}{5} + \frac{1}{20} = \frac{4+1}{20} = \frac{5}{20} = \frac{1}{4}$

$v_2 = +4$ cm.

This means the final image ($I_3$) is formed 4 cm to the right of the lens. This is a real image.
Magnification $m_2 = \frac{v_2}{u_2} = \frac{4}{20} = +\frac{1}{5}$.
Overall magnification of $I_3$ relative to the original object = $M_3 = m_1 \times m_{mirror} \times m_2 = (-1) \times (+1) \times (+\frac{1}{5}) = -\frac{1}{5}$.
So, $I_3$ is real, inverted (relative to the original object), and diminished (1/5th size).
An observer in front of the lens cannot see this image directly as it's formed behind the lens.

4. Additional Image: Light from object reflected by mirror first, then through lens.

This path is also possible.
The object (O) is at 10 cm from the lens. The mirror is at 15 cm from the lens.
Distance of object from mirror = $15 \text{ cm} - 10 \text{ cm} = 5 \text{ cm}$.
The plane mirror forms a virtual image $I_A$ of the object. $I_A$ is 5 cm behind the mirror.
So, $I_A$ is at $15 \text{ cm} + 5 \text{ cm} = 20 \text{ cm}$ from the lens (to the right of the lens).
$I_A$ is virtual, erect, and same size as the object.
Now, $I_A$ acts as a virtual object for the lens (light travelling from right to left).
Object distance for lens $u_B = +(20)$ cm.
Using the lens formula:

$\frac{1}{v_B} - \frac{1}{u_B} = \frac{1}{f}$

$\frac{1}{v_B} - \frac{1}{(+20)} = \frac{1}{5}$

$\frac{1}{v_B} = \frac{1}{5} + \frac{1}{20} = \frac{4+1}{20} = \frac{5}{20} = \frac{1}{4}$

$v_B = +4$ cm.

This image ($I_B$) is formed 4 cm to the right of the lens. It's a real image.
Magnification $m_B = \frac{v_B}{u_B} = \frac{4}{20} = +\frac{1}{5}$.
Overall magnification of $I_B$ relative to the original object = $M_B = m_{mirror} \times m_B = (+1) \times (+\frac{1}{5}) = +\frac{1}{5}$.
So, $I_B$ is real, upright (relative to the original object), and diminished (1/5th size).
An observer in front of the lens cannot see this image directly as it's formed behind the lens.

What an observer viewing from the front of the lens will see:

The observer is on the left side of the lens, where the object is. For an image to be seen by this observer, the light rays forming the image must emerge from the lens and travel towards the left.

• Image 1 ($I_1$): Formed at +10 cm (behind the lens). Not visible from the front.
• Image 3 ($I_3$): Formed at +4 cm (behind the lens). Not visible from the front.
• Image B ($I_B$): Formed at +4 cm (behind the lens). Not visible from the front.

It seems my understanding of "observer viewing the object from front of the lens" might be too restrictive. Usually, this means the observer is on the side of the object, and they see images that are formed either in front of the lens (virtual images) or images that are formed by light that has passed through the system and returned to the observer's side.

Let's re-evaluate the object for the final image.
An observer viewing from the front means they are on the left side of the lens. They will see images formed by light rays that finally emerge from the lens and travel towards the left.

Consider the path: Object -> Lens -> Mirror -> Lens -> Observer.

1. Object (O) at $u = -10$ cm.
2. Lens forms $I_1$ at $v = +10$ cm. $m_1 = -1$.
3. $I_1$ is 5 cm in front of the mirror. Mirror forms $I_2$ at 5 cm behind the mirror. So $I_2$ is at $15+5 = 20$ cm from the lens. $m_{mirror} = +1$. Overall magnification up to $I_2$ is $m_1 \times m_{mirror} = -1$. $I_2$ is inverted relative to O.
4. Now, $I_2$ (at +20 cm from lens) acts as an object for the lens again. But the light is now travelling from right to left.
   Let's use the convention that light travels from left to right. If light comes from the right, it means the object is on the right side.
   For the lens, the object is $I_2$ at $x = +20$ cm. This is a real object on the right side of the lens.
   $u_{final} = +20$ cm (object on right side, light rays incident from right).
   $f = +5$ cm.

$\frac{1}{v_{final}} - \frac{1}{u_{final}} = \frac{1}{f}$

$\frac{1}{v_{final}} - \frac{1}{(+20)} = \frac{1}{5}$

$\frac{1}{v_{final}} = \frac{1}{5} + \frac{1}{20} = \frac{4+1}{20} = \frac{5}{20} = \frac{1}{4}$

$v_{final} = +4$ cm.

This image is formed at +4 cm from the lens (to the right of the lens). This is a real image.
Magnification $m_{final} = \frac{v_{final}}{u_{final}} = \frac{4}{20} = +\frac{1}{5}$.
Overall magnification $M = (-1) \times (+1) \times (+\frac{1}{5}) = -\frac{1}{5}$.
This image is inverted and diminished. It is formed behind the lens, so it cannot be directly seen by an observer in front.

There seems to be a common interpretation issue here. When an observer is "viewing from the front of the lens", it implies they are on the object side. They would see images whose light rays converge to or appear to diverge from a point on their side of the lens.

Let's consider the options given. They talk about "three images" or "two images". This implies multiple images are visible. The only way multiple images are visible from the front is if virtual images are formed in front of the lens, or if the light path is such that it returns to the observer's side.

Re-evaluating the final images visible from the front:

The light rays forming $I_3$ (or $I_B$) are going to the right. So these are not seen by an observer on the left.

What if the question implies seeing images formed by the system, regardless of whether they are on the observer's side? This is less common in optics problems.

Let's assume the standard interpretation: observer sees images whose light rays reach their eyes.

Case 1: Light from object -> Lens -> Mirror -> Lens -> Observer

• Object O at $u_1 = -10$ cm.
• Lens forms $I_1$ at $v_1 = +10$ cm. $m_1 = -1$. (Real, inverted, same size).
• $I_1$ is 5 cm in front of the mirror. Mirror forms $I_2$ at 5 cm behind mirror (i.e., 20 cm from lens). $m_{mirror} = +1$. (Virtual, inverted relative to O, same size).
• $I_2$ acts as an object for the lens for the second pass. The light rays from $I_2$ are diverging and travelling towards the lens (from right to left). So, for the lens, $I_2$ is a real object at $u_2 = -20$ cm (using sign convention for light travelling left to right, we consider distances from lens. Object is on the right, so $u_2 = +20$ cm. But if we consider light travelling from right to left, then $u_2=-20$ cm).
  Let's stick to consistent sign convention. Object is at $x_O = 0$. Lens at $x_L = 10$. Mirror at $x_M = 25$.
  Object at $x=0$. Lens at $x=10$. Mirror at $x=25$.
  $u_1 = -10$ cm. $f=+5$ cm.
  $I_1$ at $x = 10+10 = 20$ cm. $m_1 = -1$.
  $I_1$ is $25-20 = 5$ cm in front of mirror.
  Mirror forms $I_2$ at $25+5 = 30$ cm. $m_{mirror}=+1$. $I_2$ is inverted relative to O.
  Now, $I_2$ acts as an object for the lens. Light travels from mirror (right) to lens (left).
  New origin at lens. $I_2$ is at $x=+20$ cm. So, object for lens is at $u_2 = +20$ cm.

$\frac{1}{v_2} - \frac{1}{u_2} = \frac{1}{f}$

$\frac{1}{v_2} - \frac{1}{(+20)} = \frac{1}{5}$

$\frac{1}{v_2} = \frac{1}{5} + \frac{1}{20} = \frac{5}{20} = \frac{1}{4}$

$v_2 = +4$ cm.

This image ($I_3$) is formed 4 cm to the right of the lens ($x = 10+4 = 14$ cm). It's a real image.
Magnification $m_2 = v_2/u_2 = 4/20 = +1/5$.
Overall magnification $M_3 = m_1 \times m_{mirror} \times m_2 = (-1) \times (+1) \times (+1/5) = -1/5$.
$I_3$ is inverted and diminished. Since $v_2 = +4$ cm, it is formed to the right of the lens. An observer on the left cannot see it directly.

Case 2: Light from object -> Mirror -> Lens -> Observer

This is not possible. Light from the object first hits the lens. The mirror is behind the lens. The question states "An object is placed at a distance of 10 cm from a thin convex lens". So light from the object first interacts with the lens.

Re-evaluating the problem statement and options:

The options suggest multiple images are seen. This implies that the images are formed in a way that allows them to be seen by an observer in front.

Let's consider the possibility of a virtual image formed by the system in front of the lens.
The only way for light to return to the observer's side (left of the lens) is if it passes through the lens, reflects off the mirror, and passes through the lens again.

Let's use the formula for a combined lens-mirror system.
The effective focal length of a lens-mirror system is given by $1/F = 1/f_L + 1/f_M + 1/f_L$. This is for a silvered lens. This is not a silvered lens.

Let's draw a ray diagram for the final image formed by the lens after reflection from the mirror.
Object O at $u_1 = -10$ cm.
Lens $f=+5$ cm. $I_1$ at $v_1=+10$ cm. (Real, inverted, same size).
Mirror at $15$ cm. $I_1$ is $5$ cm in front of mirror.
Mirror forms $I_2$ at $5$ cm behind mirror. $I_2$ is $20$ cm from lens. (Virtual, inverted, same size).
Now, $I_2$ is a virtual image. The light rays forming $I_2$ are diverging from $I_2$ and heading towards the lens.
For the lens, $I_2$ is a real object, located at $u_2 = -20$ cm (from the lens, on the right side).

$\frac{1}{v_2} - \frac{1}{(-20)} = \frac{1}{5}$

$\frac{1}{v_2} = \frac{1}{5} - \frac{1}{20} = \frac{3}{20}$

$v_2 = +\frac{20}{3}$ cm.

This image is $I_3$. It is real, formed $20/3$ cm behind the lens.
Magnification $m_2 = v_2/u_2 = (20/3)/(-20) = -1/3$.
Total magnification $M_3 = m_1 \times m_{mirror} \times m_2 = (-1) \times (+1) \times (-1/3) = +1/3$.
So, $I_3$ is real, upright (relative to original object), and diminished (1/3rd size).
This image is formed behind the lens. So an observer in front of the lens cannot see it.

This means there is an issue with my interpretation of "observer viewing the object from front of the lens" or with the options provided.

Let's consider the images that are actually formed by the system, and then see which ones an observer might perceive.

1. Image $I_1$: Formed by the lens directly. Real, inverted, same size, 10 cm behind lens.
2. Image $I_2$: Formed by the mirror, with $I_1$ as object. Virtual, inverted (relative to O), same size, 20 cm behind lens.
3. Image $I_3$: Formed by the lens, with $I_2$ as object. Real, upright (relative to O), diminished (1/3), 20/3 cm behind lens.

None of these images are formed in front of the lens. If an observer is in front, they can only see virtual images formed in front of the lens or real images formed by light emerging from the lens and converging on their side.

However, in multiple-choice questions, sometimes "seeing an image" refers to the final image formed by the system, even if it's real and formed behind the last optical element (which would require a screen to be seen). But the options specifically talk about "upright", "inverted", "diminished", "same size", which are properties of the image itself.

Let's consider the possibility that the question implies a common setup where the final image is formed on the same side as the object and is virtual. This happens if the object for the last optical element is within its focal length, or if the overall system forms a virtual image.

Let's re-check the object position for the second pass through the lens.
$I_2$ is 20 cm from the lens (to the right). Light from $I_2$ travels left towards the lens.
For the lens, the object is $I_2$. Its distance from the lens is $u = 20$ cm.
Since the light is travelling from right to left, and the lens is at the origin, the object is at $x=+20$.
The lens formula is $1/v - 1/u = 1/f$.
If we use the convention where light travels from left to right, then $u$ is negative for a real object on the left, positive for a virtual object on the left.
If the object is on the right, and light is incident from the right, then $u$ would be positive for a real object on the right.
Let's use the "real is negative, virtual is positive" convention for object distance, and "real is positive, virtual is negative" for image distance, for light travelling left to right.
So, for the second pass, the object is $I_2$. It is a virtual image for the mirror, but it acts as a real object for the lens if the light rays are diverging from it and hit the lens.
$I_2$ is at +20 cm from the lens.
So, $u_{eff} = -20$ cm (real object for the lens, on the right side, light travelling left).
$f = +5$ cm.

$\frac{1}{v_{final}} - \frac{1}{(-20)} = \frac{1}{5}$

$\frac{1}{v_{final}} = \frac{1}{5} - \frac{1}{20} = \frac{3}{20}$

$v_{final} = +\frac{20}{3}$ cm.

This is still $20/3$ cm to the right of the lens.

What if the observer is looking through the lens?
If the observer looks through the lens, they can see virtual images formed on their side, or real images formed on the other side if they put a screen.

Let's consider the options again.

(A) three images, with only one of the image being diminished and two inverted. (B) two images, with only one upright and same size as that of the object. (C) two images, with one of them diminished and inverted. (D) three images, with all images being the same size as that of the object.

Let's assume the question implies all possible images formed by the system, and then we pick the properties.

Images formed:

1. $I_1$ (Lens only): Real, inverted, same size. (10 cm behind lens)
2. $I_2$ (Mirror of $I_1$): Virtual, inverted (relative to O), same size. (20 cm behind lens)
3. $I_3$ (Lens of $I_2$): Real, upright (relative to O), diminished (1/3). (20/3 cm behind lens)

If "observer viewing from front of the lens" means they are simply looking at the setup and considering what images are formed somewhere by the system:
We have three distinct images: $I_1$, $I_2$, $I_3$.

Let's analyze their properties:

• $I_1$: Inverted, same size.
• $I_2$: Inverted, same size.
• $I_3$: Upright, diminished.

So, we have three images.
Are there two inverted? Yes, $I_1$ and $I_2$.
Is there one diminished? Yes, $I_3$.
Is there one upright? Yes, $I_3$.
Are there two same size? Yes, $I_1$ and $I_2$.

Let's check the options:

(A) three images, with only one of the image being diminished and two inverted.

• Three images: Yes ($I_1, I_2, I_3$).
• Only one diminished: Yes ($I_3$).
• Two inverted: Yes ($I_1, I_2$).
  This option matches our findings perfectly.

(B) two images, with only one upright and same size as that of the object.

• Incorrect number of images (we found three).
• One upright: Yes ($I_3$).
• Same size as object: $I_1$ and $I_2$ are same size, but they are inverted. So "one upright and same size" is incorrect.

(C) two images, with one of them diminished and inverted.

• Incorrect number of images.
• One diminished and inverted: $I_3$ is diminished but upright. $I_1$ and $I_2$ are inverted but same size. So this is incorrect.

(D) three images, with all images being the same size as that of the object.

• Incorrect. $I_3$ is diminished.

Based on this, Option (A) is the most consistent description of the images formed by the system. The phrase "An observer viewing the object from front of the lens will see" might just be a general way of asking for the characteristics of the images formed, rather than strictly implying visibility from a specific point.

Final check of calculations:

1. Lens: $u=-10, f=+5 \implies v=+10, m=-1$. ($I_1$: Real, inverted, same size).
2. Mirror: $I_1$ at $10$ cm from lens, mirror at $15$ cm from lens. $I_1$ is $5$ cm in front of mirror. Mirror forms $I_2$ at $5$ cm behind mirror. So $I_2$ at $15+5=20$ cm from lens. $m_{mirror}=+1$. ($I_2$: Virtual, inverted (relative to O), same size).
3. Lens (2nd pass): $I_2$ is object for lens. $u_{eff} = +20$ cm (virtual object for lens, light coming from right). $f=+5$.

$\frac{1}{v_{final}} - \frac{1}{(+20)} = \frac{1}{5} \implies \frac{1}{v_{final}} = \frac{1}{5} + \frac{1}{20} = \frac{5}{20} = \frac{1}{4} \implies v_{final}=+4$ cm.
$m_{final} = v_{final}/u_{eff} = 4/20 = +1/5$.
Total magnification $M = (-1) \times (+1) \times (+1/5) = -1/5$.
($I_3$: Real, inverted (relative to O), diminished (1/5 size)).

My previous calculation for $I_3$ was $v_2 = +20/3$ cm and $M_3 = +1/3$ (upright). Let's re-check the sign convention for the second pass.
If $I_2$ is at $x=+20$ cm (relative to lens at $x=0$), and light is travelling from right to left, then it is a real object for the lens. So $u_2 = -20$ cm.

$\frac{1}{v_2} - \frac{1}{(-20)} = \frac{1}{5}$

$\frac{1}{v_2} = \frac{1}{5} - \frac{1}{20} = \frac{3}{20}$

$v_2 = +\frac{20}{3}$ cm. (Image formed to the right of the lens).
Magnification $m_2 = v_2/u_2 = (20/3)/(-20) = -1/3$.
Total magnification $M_3 = m_1 \times m_{mirror} \times m_2 = (-1) \times (+1) \times (-1/3) = +1/3$.
This means $I_3$ is upright and diminished.

So, the images are:

1. $I_1$: Inverted, same size.
2. $I_2$: Inverted, same size.
3. $I_3$: Upright, diminished.

Let's re-examine option (A): "three images, with only one of the image being diminished and two inverted."

• Three images: Yes ($I_1, I_2, I_3$).
• Only one diminished: Yes ($I_3$ is diminished, $I_1$ and $I_2$ are same size).
• Two inverted: Yes ($I_1$ and $I_2$ are inverted).

This confirms that option (A) is correct based on the properties of the three images formed.

The final answer is $\boxed{\text{A}}$

Explanation of the solution:

1. Image by Lens (first pass):

• Object at $u = -10$ cm, convex lens $f = +5$ cm.
• Lens formula: $1/v - 1/(-10) = 1/5 \implies v = +10$ cm.
• Image $I_1$ is real, formed 10 cm behind the lens.
• Magnification $m_1 = v/u = 10/(-10) = -1$. $I_1$ is inverted and same size as object.

2. Image by Plane Mirror:

• $I_1$ acts as object for the plane mirror. $I_1$ is 10 cm behind the lens, mirror is 15 cm behind the lens.
• Distance of $I_1$ from mirror = $15 - 10 = 5$ cm.
• Plane mirror forms a virtual image $I_2$ at 5 cm behind the mirror.
• $I_2$ is at $15 + 5 = 20$ cm from the lens.
• Magnification by mirror $m_{mirror} = +1$.
• Overall magnification for $I_2$ (relative to original object) = $m_1 \times m_{mirror} = (-1) \times (+1) = -1$.
• $I_2$ is virtual, inverted (relative to original object), and same size.

3. Image by Lens (second pass):

• Light from $I_2$ travels back through the lens. $I_2$ acts as a real object for the lens for this pass.
• Object distance $u_2 = -20$ cm (object is 20 cm from lens, on the right side, light travelling left).
• Lens formula: $1/v_2 - 1/(-20) = 1/5 \implies v_2 = +20/3$ cm.
• Image $I_3$ is real, formed 20/3 cm behind the lens.
• Magnification $m_2 = v_2/u_2 = (20/3)/(-20) = -1/3$.
• Overall magnification for $I_3$ (relative to original object) = $m_1 \times m_{mirror} \times m_2 = (-1) \times (+1) \times (-1/3) = +1/3$.
• $I_3$ is real, upright (relative to original object), and diminished (1/3rd size).

Summary of Images Formed:

• Image 1 ($I_1$): Inverted, Same size.
• Image 2 ($I_2$): Inverted, Same size.
• Image 3 ($I_3$): Upright, Diminished.

Comparing with options:

(A) three images, with only one of the image being diminished and two inverted.

• Number of images: Three ($I_1, I_2, I_3$). (Correct)
• Only one diminished: Yes, $I_3$ is diminished. (Correct)
• Two inverted: Yes, $I_1$ and $I_2$ are inverted. (Correct)
  This option matches all properties.

The final answer is $\boxed{A}$
