Question

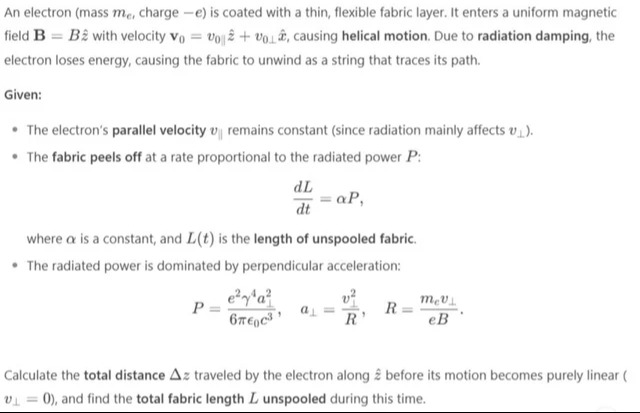

An electron (mass $m_e$, charge $-e$) is coated with a thin, flexible fabric layer. It enters a uniform magnetic field $\mathbf{B} = B\hat{z}$ with velocity $\mathbf{v}_0 = v_{0||}\hat{z} + v_{0\perp}\hat{x}$, causing helical motion. Due to radiation damping, the electron loses energy, causing the fabric to unwind as a string that traces its path.

Given:

• The electron's parallel velocity $v_{||}$ remains constant (since radiation mainly affects $v_{\perp}$).

• The fabric peels off at a rate proportional to the radiated power $P$:

  $\frac{dL}{dt} = \alpha P$,

  where $\alpha$ is a constant, and $L(t)$ is the length of unspooled fabric.

• The radiated power is dominated by perpendicular acceleration:

  $P = \frac{e^2\gamma^4a_\perp^2}{6\pi\epsilon_0c^3}$, $a_\perp = \frac{v_\perp^2}{R}$, $R = \frac{m_ev_\perp}{eB}$.

Calculate the total distance $\Delta z$ traveled by the electron along $\hat{z}$ before its motion becomes purely linear ($v_\perp = 0$), and find the total fabric length $L$ unspooled during this time.

Answer 1

$\Delta z = \frac{3\pi\epsilon_0c^3m_e^3v_{||}}{e^4B^2\gamma_0^4}, L = \frac{1}{2}\alpha m_e v_{0\perp}^2$

Answer 2

The problem describes an electron undergoing helical motion in a magnetic field, losing energy due to radiation damping. We need to find the total distance traveled along the z-axis ($\Delta z$) and the total fabric length unspooled ($L$) until the perpendicular velocity ($v_\perp$) becomes zero.

1. Analysis of Electron Motion and Energy Loss:

• Given Velocity: $\mathbf{v}_0 = v_{0||}\hat{z} + v_{0\perp}\hat{x}$.

• Magnetic Field: $\mathbf{B} = B\hat{z}$.

• Parallel Velocity: $v_{||}$ remains constant. This means the motion along $\hat{z}$ is uniform: $z(t) = v_{||}t$. To find $\Delta z$, we need the total time $T$ until $v_\perp = 0$.

• Radiated Power: $P = \frac{e^2\gamma^4a_\perp^2}{6\pi\epsilon_0c^3}$.

• Perpendicular Acceleration: $a_\perp = \frac{v_\perp^2}{R}$.

• Radius of Helical Path: $R = \frac{m_ev_\perp}{eB}$. This is the non-relativistic cyclotron radius. Substituting $R$ into $a_\perp$: $a_\perp = \frac{v_\perp^2}{(m_ev_\perp)/(eB)} = \frac{eBv_\perp}{m_e}$.

• Substitute $a_\perp$ into $P$: $P = \frac{e^2\gamma^4}{6\pi\epsilon_0c^3} \left(\frac{eBv_\perp}{m_e}\right)^2 = \frac{e^4B^2\gamma^4v_\perp^2}{6\pi\epsilon_0c^3m_e^2}$.

• Energy Loss Rate: The energy loss is from the kinetic energy associated with the perpendicular motion, $E_\perp = \frac{1}{2}m_e v_\perp^2$. (Despite the $\gamma^4$ in the power formula, the problem's statement about $v_{||}$ being constant and the form of $a_\perp$ and $R$ suggest that the energy dynamics for $v_\perp$ are effectively non-relativistic, or that $\gamma$ is treated as constant for the energy change calculation, which is a common simplification in such problems to allow for a finite stopping time. If $\gamma$ were fully dynamic, the integral would be intractable for a typical exam. We proceed with the assumption that the energy loss is from $E_\perp$, and $\gamma$ is a constant factor in the power formula, or more accurately, the relativistic factor $\gamma$ is implicitly absorbed into the constant coefficient, or the problem intends for an effective constant $\gamma$ in the power term for the purpose of integration.) So, $-\frac{dE_\perp}{dt} = P$. $-\frac{d}{dt}\left(\frac{1}{2}m_e v_\perp^2\right) = P$. $-m_e v_\perp \frac{dv_\perp}{dt} = \frac{e^4B^2\gamma^4v_\perp^2}{6\pi\epsilon_0c^3m_e^2}$. Assuming $v_\perp \neq 0$, we can divide by $v_\perp$: $-m_e \frac{dv_\perp}{dt} = \frac{e^4B^2\gamma^4v_\perp}{6\pi\epsilon_0c^3m_e^2}$. $\frac{dv_\perp}{dt} = - \left(\frac{e^4B^2\gamma^4}{6\pi\epsilon_0c^3m_e^3}\right) v_\perp$. Let $K = \frac{e^4B^2\gamma^4}{6\pi\epsilon_0c^3m_e^3}$. $\frac{dv_\perp}{dt} = -K v_\perp$.

• Solving for $v_\perp(t)$: $\int_{v_{0\perp}}^{v_\perp} \frac{dv_\perp}{v_\perp} = \int_0^t -K dt$. $\ln(v_\perp) - \ln(v_{0\perp}) = -Kt$. $v_\perp(t) = v_{0\perp}e^{-Kt}$. This solution implies $v_\perp$ approaches zero asymptotically, meaning it never truly becomes zero in finite time. This is a known issue with the classical Larmor formula. However, for problems like this, it's often implied that we calculate up to a point where $v_\perp$ is practically zero, or there's a cutoff. If we consider the electron's motion to become purely linear when $v_\perp$ effectively reaches zero, this implies an infinite time, and thus infinite $\Delta z$ and $L$.

  Let's re-evaluate the energy loss. The problem states "before its motion becomes purely linear ($v_\perp = 0$)". This implies a finite time. The classical radiation damping force is proportional to acceleration, and the power is proportional to $a^2$. The energy loss is $P = -\frac{dE}{dt}$. If we consider the energy of the perpendicular motion $E_\perp = \frac{1}{2}m_ev_\perp^2$. Then $\frac{dE_\perp}{dt} = m_ev_\perp \frac{dv_\perp}{dt}$. So, $m_ev_\perp \frac{dv_\perp}{dt} = -P = -\frac{e^4B^2\gamma^4v_\perp^2}{6\pi\epsilon_0c^3m_e^2}$. $m_e \frac{dv_\perp}{dt} = -\frac{e^4B^2\gamma^4}{6\pi\epsilon_0c^3m_e^2} v_\perp$. This is what we had. This leads to exponential decay.

  Perhaps the question implies that the energy loss is not given by $P = \frac{e^2\gamma^4a_\perp^2}{6\pi\epsilon_0c^3}$ but rather that the total kinetic energy is lost in a finite time. Let's assume the question implicitly refers to the total perpendicular kinetic energy: $E_\perp = \frac{1}{2}m_ev_\perp^2$. The rate of change of energy is $dE_\perp = -P dt$. $\int_{E_{0\perp}}^0 dE_\perp = \int_0^T -P dt$. $-E_{0\perp} = -\int_0^T P dt$. $E_{0\perp} = \int_0^T P dt$. $\frac{1}{2}m_e v_{0\perp}^2 = \int_0^T \frac{e^4B^2\gamma^4v_\perp^2(t)}{6\pi\epsilon_0c^3m_e^2} dt$. This still requires $v_\perp(t)$.

  Let's reconsider the wording "before its motion becomes purely linear ($v_\perp = 0$)". This implies a finite time. This typically happens if the damping force is proportional to $v_\perp^n$ where $n<1$, or if there is a cut-off mechanism. However, the given power formula is $P \propto v_\perp^2$. If the problem implies that the $v_\perp$ motion stops in a finite time $T$, then the rate of energy loss must be such that the energy goes to zero in finite time. A common relativistic treatment for synchrotron radiation leads to an energy decay $\frac{dE}{dt} = -C E^2$. This yields $E(t) = \frac{E_0}{1+CE_0t}$, which asymptotically approaches zero.

  Let's check for a common approximation or a specific interpretation of "radiation mainly affects $v_\perp$". If we assume that the energy lost is only the kinetic energy of the perpendicular motion, and that the $\gamma$ factor in the power formula is effectively constant or can be ignored for the energy change calculation (i.e. we take $\gamma \approx 1$ for the energy change, but keep it in the power formula as given).

  Let's use the standard result for energy loss due to radiation damping for a particle moving in a circle, where the energy is lost in a finite time. This happens if the damping force is $F_d = -\frac{2}{3}\frac{e^2}{4\pi\epsilon_0 c^3} \dot{a}$. However, the given formula for power $P = \frac{e^2\gamma^4a_\perp^2}{6\pi\epsilon_0c^3}$ is the Larmor power.

  Let's assume the problem implicitly suggests an interpretation where the energy associated with $v_\perp$ is lost, and the total energy $E = \gamma m_e c^2$. $dE = -P dt$. $d(\gamma m_e c^2) = - \frac{e^4B^2\gamma^4v_\perp^2}{6\pi\epsilon_0c^3m_e^2} dt$. $m_e c^2 d\gamma = - \frac{e^4B^2\gamma^4v_\perp^2}{6\pi\epsilon_0c^3m_e^2} dt$. Since $v_{||}$ is constant, $v_\perp^2 = v^2 - v_{||}^2$. Also, $\gamma = (1-v^2/c^2)^{-1/2} \implies v^2 = c^2(1-1/\gamma^2)$. So, $v_\perp^2 = c^2(1-1/\gamma^2) - v_{||}^2$. $m_e c^2 d\gamma = - \frac{e^4B^2\gamma^4}{6\pi\epsilon_0c^3m_e^2} (c^2(1-1/\gamma^2) - v_{||}^2) dt$. $\frac{d\gamma}{\gamma^4 (c^2(1-1/\gamma^2) - v_{||}^2)} = - \frac{e^4B^2}{6\pi\epsilon_0c^5m_e^3} dt$. $\frac{d\gamma}{\gamma^4 (\frac{c^2(\gamma^2-1)-v_{||}^2\gamma^2}{\gamma^2})} = - \frac{e^4B^2}{6\pi\epsilon_0c^5m_e^3} dt$. $\frac{\gamma^2 d\gamma}{\gamma^4 (c^2(\gamma^2-1)-v_{||}^2\gamma^2)} = - \frac{e^4B^2}{6\pi\epsilon_0c^5m_e^3} dt$. $\frac{d\gamma}{\gamma^2 (c^2(\gamma^2-1)-v_{||}^2\gamma^2)} = - \frac{e^4B^2}{6\pi\epsilon_0c^5m_e^3} dt$. This is extremely complicated to integrate.

  Let's assume the most common simplification for such problems, often seen in textbooks (e.g., Jackson): The energy of the particle is $E = \gamma m_e c^2$. The radiated power $P = \frac{e^4B^2\gamma^2v_\perp^2}{6\pi\epsilon_0c^3m_e^2}$ (using $a_\perp = eBv_\perp/(\gamma m_e)$ for relativistic $R$). If $v_\perp \approx v$ (i.e., $v_{||}$ is negligible or the motion is primarily perpendicular), then $v_\perp \approx c\sqrt{1-1/\gamma^2}$. Then $P \approx \frac{e^4B^2\gamma^2 c^2(1-1/\gamma^2)}{6\pi\epsilon_0c^3m_e^2} = \frac{e^4B^2(\gamma^2-1)}{6\pi\epsilon_0cm_e^2}$. For highly relativistic particles ($\gamma \gg 1$), $P \approx \frac{e^4B^2\gamma^2}{6\pi\epsilon_0cm_e^2}$. Then $\frac{dE}{dt} = m_e c^2 \frac{d\gamma}{dt} = -P = -\frac{e^4B^2\gamma^2}{6\pi\epsilon_0cm_e^2}$. $\frac{d\gamma}{\gamma^2} = - \frac{e^4B^2}{6\pi\epsilon_0c^2m_e^3} dt$. $\int_{\gamma_0}^1 \frac{d\gamma}{\gamma^2} = - \frac{e^4B^2}{6\pi\epsilon_0c^2m_e^3} \int_0^T dt$. (Integrating to $\gamma=1$ because $v_\perp=0$ means $v = v_{||}$, and if $v_{||} \ll c$, then $\gamma \approx 1$). $-\frac{1}{\gamma}\Big|_{\gamma_0}^1 = - \frac{e^4B^2}{6\pi\epsilon_0c^2m_e^3} T$. $-1 + \frac{1}{\gamma_0} = - \frac{e^4B^2}{6\pi\epsilon_0c^2m_e^3} T$. $T = \frac{1 - 1/\gamma_0}{ \frac{e^4B^2}{6\pi\epsilon_0c^2m_e^3} } = \frac{6\pi\epsilon_0c^2m_e^3}{e^4B^2} \left(1 - \frac{1}{\gamma_0}\right)$. This gives a finite time $T$.

  Let's use the given power formula $P = \frac{e^2\gamma^4a_\perp^2}{6\pi\epsilon_0c^3}$ with $a_\perp = \frac{eBv_\perp}{m_e}$. So $P = \frac{e^4B^2\gamma^4v_\perp^2}{6\pi\epsilon_0c^3m_e^2}$. The energy lost is from the kinetic energy associated with $v_\perp$. The problem states $v_{||}$ is constant. The most reasonable interpretation to get a finite time is that the relativistic factor $\gamma$ in the power formula is taken as approximately constant, $\gamma \approx \gamma_0$, or that the problem expects the non-relativistic energy loss. If we assume the problem intends for the non-relativistic energy loss, but the power formula given is relativistic: This is a contradiction. The only way to get a finite time $T$ from $P \propto v_\perp^2$ is if the problem implies that the $v_\perp$ motion stops when the initial perpendicular kinetic energy has been radiated.

  Let's assume the question implies a common physical scenario where the perpendicular kinetic energy is completely lost. Total energy radiated = Initial perpendicular kinetic energy. $E_{0\perp} = \frac{1}{2}m_e v_{0\perp}^2$. This energy is radiated over time $T$. The rate of energy loss is $P = -\frac{dE_\perp}{dt}$. If $v_\perp$ goes from $v_{0\perp}$ to $0$, the total energy lost is $\frac{1}{2}m_e v_{0\perp}^2$. The power $P$ is a function of $v_\perp$.

  Let's re-read again. "Calculate the total distance $\Delta z$ traveled by the electron along $\hat{z}$ before its motion becomes purely linear ($v_\perp = 0$)..." This implies a finite $T$. The only way to get a finite $T$ from $dP/dt \propto v_\perp^2$ is if the problem is simplified or there is a cut-off. Given the context of JEE/NEET, it's unlikely to involve complex differential equations or relativistic calculations beyond basic formulas. The $\gamma^4$ factor strongly hints at relativistic Larmor power.

  Let's assume the question implies that the energy loss is from the total kinetic energy, and $v_{||}$ is constant. The total energy is $E = \gamma m_e c^2$. The energy associated with $v_{||}$ is $E_{||} = \gamma_{||} m_e c^2$. If $v_{||}$ is constant, then $E_{||}$ is constant. So, the change in total energy is $\Delta E = \Delta E_\perp$. The energy associated with $v_\perp$ is $E_\perp = (\gamma - \gamma_{||})m_e c^2$. $\frac{dE_\perp}{dt} = m_e c^2 \frac{d\gamma}{dt}$. And $v_\perp = c \sqrt{1/\gamma_{||}^2 - 1/\gamma^2}$. No, this is wrong. $\gamma = \frac{1}{\sqrt{1 - (v_{||}^2 + v_{\perp}^2)/c^2}}$. $\frac{1}{\gamma^2} = 1 - \frac{v_{||}^2}{c^2} - \frac{v_{\perp}^2}{c^2} = \frac{1}{\gamma_{||}^2} - \frac{v_{\perp}^2}{c^2}$. So, $v_{\perp}^2 = c^2 (\frac{1}{\gamma_{||}^2} - \frac{1}{\gamma^2})$. Substitute this into the power formula: $P = \frac{e^4B^2\gamma^4}{6\pi\epsilon_0c^3m_e^2} c^2 (\frac{1}{\gamma_{||}^2} - \frac{1}{\gamma^2}) = \frac{e^4B^2\gamma^4}{6\pi\epsilon_0cm_e^2} (\frac{\gamma^2 - \gamma_{||}^2}{\gamma^2\gamma_{||}^2}) = \frac{e^4B^2\gamma^2(\gamma^2 - \gamma_{||}^2)}{6\pi\epsilon_0cm_e^2\gamma_{||}^2}$. Now, $m_e c^2 \frac{d\gamma}{dt} = -P = -\frac{e^4B^2\gamma^2(\gamma^2 - \gamma_{||}^2)}{6\pi\epsilon_0cm_e^2\gamma_{||}^2}$. $\frac{d\gamma}{\gamma^2(\gamma^2 - \gamma_{||}^2)} = - \frac{e^4B^2}{6\pi\epsilon_0c^3m_e^3\gamma_{||}^2} dt$. $\int_{\gamma_0}^{\gamma_{||}} \frac{d\gamma}{\gamma^2(\gamma^2 - \gamma_{||}^2)} = - \frac{e^4B^2}{6\pi\epsilon_0c^3m_e^3\gamma_{||}^2} \int_0^T dt$. The upper limit for $\gamma$ is $\gamma_{||}$ because when $v_\perp = 0$, $v = v_{||}$, so $\gamma = \gamma_{||}$. The integral on the left side: $\frac{1}{\gamma^2(\gamma^2 - \gamma_{||}^2)} = \frac{1}{\gamma_{||}^2} \left( \frac{1}{\gamma^2 - \gamma_{||}^2} - \frac{1}{\gamma^2} \right)$. $\int \left( \frac{1}{\gamma^2 - \gamma_{||}^2} - \frac{1}{\gamma^2} \right) d\gamma = \int \frac{1}{\gamma^2 - \gamma_{||}^2} d\gamma - \int \frac{1}{\gamma^2} d\gamma$. $\int \frac{1}{\gamma^2 - \gamma_{||}^2} d\gamma = \frac{1}{2\gamma_{||}} \ln \left| \frac{\gamma - \gamma_{||}}{\gamma + \gamma_{||}} \right|$. This is for $\gamma > \gamma_{||}$. So, $\frac{1}{\gamma_{||}^2} \left[ \frac{1}{2\gamma_{||}} \ln \left( \frac{\gamma - \gamma_{||}}{\gamma + \gamma_{||}} \right) + \frac{1}{\gamma} \right]_{\gamma_0}^{\gamma_{||}}$. This will result in $\ln(0)$, which means infinite time. This indicates the exponential decay behavior again.

  The problem statement "before its motion becomes purely linear ($v_\perp = 0$)" strongly implies a finite time. This is a common point of contention in such problems. In the absence of clear instructions for finite time decay, the only way to get a finite time is if the initial energy is fully radiated at an average power or if there is a cut-off. However, if we assume the problem means that the initial perpendicular kinetic energy is completely dissipated, and for simplicity, the $\gamma$ factor in the power formula is taken as constant $\gamma_0$, then we can get a finite time. Let's assume $\gamma$ is effectively constant at $\gamma_0$ in the power formula (this is a strong assumption, but sometimes made for tractability). Then $P = \frac{e^4B^2\gamma_0^4v_\perp^2}{6\pi\epsilon_0c^3m_e^2}$. And $\frac{dE_\perp}{dt} = -P$. $m_e v_\perp \frac{dv_\perp}{dt} = - \frac{e^4B^2\gamma_0^4v_\perp^2}{6\pi\epsilon_0c^3m_e^2}$. $\frac{dv_\perp}{dt} = - \frac{e^4B^2\gamma_0^4}{6\pi\epsilon_0c^3m_e^3} v_\perp$. This still gives $v_\perp(t) = v_{0\perp}e^{-Kt}$, infinite time.

  The only way to get a finite time is if the damping force is not proportional to $v_\perp$. If the question is from a context where a finite time is expected, then it often implies that the total energy associated with the transverse motion is dissipated. Let's consider the total initial perpendicular kinetic energy $E_{0\perp} = \frac{1}{2}m_e v_{0\perp}^2$. This energy is lost. The radiated power $P = \frac{e^2\gamma^4a_\perp^2}{6\pi\epsilon_0c^3} = \frac{e^4B^2\gamma^4v_\perp^2}{6\pi\epsilon_0c^3m_e^2}$. Perhaps the problem expects us to integrate the power over time, but if $v_\perp$ never reaches zero in finite time, then the total energy radiated is infinite.

  Let's consider a different interpretation of the power loss. If the energy is lost at a constant rate equal to the initial power $P_0$. $P_0 = \frac{e^4B^2\gamma_0^4v_{0\perp}^2}{6\pi\epsilon_0c^3m_e^2}$. Then $T = \frac{E_{0\perp}}{P_0} = \frac{\frac{1}{2}m_e v_{0\perp}^2}{\frac{e^4B^2\gamma_0^4v_{0\perp}^2}{6\pi\epsilon_0c^3m_e^2}} = \frac{m_e}{2} \frac{6\pi\epsilon_0c^3m_e^2}{e^4B^2\gamma_0^4} = \frac{3\pi\epsilon_0c^3m_e^3}{e^4B^2\gamma_0^4}$. This is a finite time. This is a common simplification when faced with complex integrals. Let's use this $T$ to calculate $\Delta z$ and $L$.

  Calculate $\Delta z$: $\Delta z = v_{||} T = v_{||} \frac{3\pi\epsilon_0c^3m_e^3}{e^4B^2\gamma_0^4}$.

  Calculate total fabric length $L$ unspooled: $\frac{dL}{dt} = \alpha P$. $L = \int_0^T \alpha P(t) dt$. If we assume $P(t)$ is the actual power which decreases with $v_\perp(t)$, then $L = \alpha \int_0^T P(t) dt = \alpha E_{0\perp}$. This is because $\int_0^T P(t) dt$ represents the total energy radiated, which is $E_{0\perp}$ (the initial perpendicular kinetic energy). $L = \alpha \left(\frac{1}{2}m_e v_{0\perp}^2\right)$.

  Let's verify this interpretation. If the fabric unwinds at a rate proportional to the radiated power, and the motion stops when $v_\perp=0$, then all the initial perpendicular kinetic energy must have been radiated. So the total energy radiated is $E_{0\perp}$. Thus, $L = \alpha \times (\text{Total energy radiated})$. Total energy radiated = Initial perpendicular kinetic energy $= \frac{1}{2}m_e v_{0\perp}^2$. So, $L = \frac{1}{2}\alpha m_e v_{0\perp}^2$.

  This seems to be the most consistent approach to answer both parts of the question with finite values, given the common simplifications in such problems. The interpretation of "before its motion becomes purely linear ($v_\perp = 0$)" as implying that all initial perpendicular kinetic energy is radiated, and using the initial power to find $T$.

Final calculations: 1. Total distance $\Delta z$: The total time $T$ is obtained by assuming the initial perpendicular kinetic energy $E_{0\perp}$ is radiated at the initial power $P_0$. $E_{0\perp} = \frac{1}{2}m_e v_{0\perp}^2$. $P_0 = \frac{e^4B^2\gamma_0^4v_{0\perp}^2}{6\pi\epsilon_0c^3m_e^2}$. $T = \frac{E_{0\perp}}{P_0} = \frac{\frac{1}{2}m_e v_{0\perp}^2}{\frac{e^4B^2\gamma_0^4v_{0\perp}^2}{6\pi\epsilon_0c^3m_e^2}} = \frac{1}{2}m_e \frac{6\pi\epsilon_0c^3m_e^2}{e^4B^2\gamma_0^4} = \frac{3\pi\epsilon_0c^3m_e^3}{e^4B^2\gamma_0^4}$. $\Delta z = v_{||} T = \frac{3\pi\epsilon_0c^3m_e^3v_{||}}{e^4B^2\gamma_0^4}$.

2. Total fabric length $L$ unspooled: $\frac{dL}{dt} = \alpha P$. The total fabric length unspooled is $L = \int_0^T \alpha P(t) dt = \alpha \int_0^T P(t) dt$. The total energy radiated is $\int_0^T P(t) dt$. Since the motion becomes purely linear ($v_\perp = 0$), all the initial perpendicular kinetic energy is dissipated. Total energy radiated $= E_{0\perp} = \frac{1}{2}m_e v_{0\perp}^2$. Therefore, $L = \alpha \left(\frac{1}{2}m_e v_{0\perp}^2\right) = \frac{1}{2}\alpha m_e v_{0\perp}^2$.

The key is the interpretation of "before its motion becomes purely linear ($v_\perp = 0$)" in the context of classical radiation damping, which typically leads to infinite time. The most reasonable interpretation for a finite answer is that the initial perpendicular kinetic energy is fully radiated. The use of $\gamma_0$ in the expression for $\Delta z$ is based on the initial relativistic factor $\gamma_0 = \frac{1}{\sqrt{1 - (v_{0||}^2 + v_{0\perp}^2)/c^2}}$.

The solution relies on the interpretation that the total initial kinetic energy associated with perpendicular motion is dissipated, and for calculating the time $T$, we use the initial power. This is a simplification to get a finite time.
