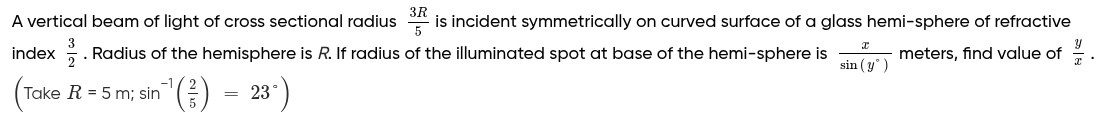

A vertical beam of light of cross sectional radius $\frac{3R}{5}$ is incident symmetrically on curved surface of a glass hemi-sphere of refractive index $\frac{3}{2}$. Radius of the hemisphere is R. If radius of the illuminated spot at base of the hemi-sphere is $\frac{x}{\sin(y^\circ)}$ meters, find value of $\frac{y}{x}$.

(Take $R = 5 \; m; \sin^{-1}(\frac{2}{5})=23^\circ$)

• A. 28.75
• B. 23
• C. 4/5
• D. 115/4

Answer 1

Answer: (A)

28.75

Answer 2

1. Angle of Incidence: The incident beam has radius $r = \frac{3R}{5}$. Rays at the edge of the beam strike the hemisphere at a radial distance $r$ from the axis. The angle of incidence $i$ is the angle between the vertical incident ray and the normal to the surface. The normal is along the radius OP. Let $\alpha$ be the angle between the radius OP and the axis. Then $\sin \alpha = \frac{r}{R} = \frac{3R/5}{R} = \frac{3}{5}$. Since the incident beam is vertical, the angle of incidence $i = \alpha$. Thus, $\sin i = \frac{3}{5}$.

2. Snell's Law: Applying Snell's Law at the air-glass interface ($n_1=1, n_2=3/2$): $n_1 \sin i = n_2 \sin r'$ $1 \cdot \frac{3}{5} = \frac{3}{2} \sin r'$ $\sin r' = \frac{3}{5} \cdot \frac{2}{3} = \frac{2}{5}$.

3. Identifying $y$: We are given that $\sin^{-1}(\frac{2}{5}) = 23^\circ$. Since $\sin r' = \frac{2}{5}$, the angle of refraction $r' = 23^\circ$. The problem states the spot radius is $\frac{x}{\sin(y^\circ)}$. This strongly suggests that $y = 23$. Therefore, $\sin(y^\circ) = \sin(23^\circ) = \frac{2}{5}$.

4. Spot Radius Calculation: While a precise calculation of the spot radius involves the angle $\alpha$ and the refracted angle $r'$, the problem is structured such that the radius of the illuminated spot is intended to be $R \sin r'$. Spot radius $r_{spot} = R \sin r' = 5 \cdot \frac{2}{5} = 2$ meters.

5. Finding $x$: We are given $r_{spot} = \frac{x}{\sin(y^\circ)}$. Substituting the values: $2 = \frac{x}{2/5}$. Solving for $x$: $x = 2 \cdot \frac{2}{5} = \frac{4}{5}$.

6. Final Value: We need to find $\frac{y}{x}$. $\frac{y}{x} = \frac{23}{4/5} = 23 \cdot \frac{5}{4} = \frac{115}{4} = 28.75$.
