Question

A point charge ${{q}_{1}}=+2\mu C$ is placed at the origin of coordinates. A second charge, ${{q}_{2}}=-3\mu C$, is placed on the x-axis at x = 100cm. At what point (or points) on the x-axis will the absolute potential be zero?

A. x = 40cm and x = –200cm
B. x = 40cm only
C. x = –200cm only
D. x = 80cm only

Answer 1

We are given two charges and their position coordinates. To find the point where the electric potential is zero we need to find the electric potential at that point due to both charges separately. Since the total potential is zero we can equate both potentials and thus we get the solution.

Formula used:
Electric potential, $V=\dfrac{kq}{r}$ .

Complete step-by-step answer:
In the question we are given two point charges and the positions of these charges are also given.
Charge ${{q}_{1}}=+2\mu C$ and charge ${{q}_{2}}=-3\mu C$
The position of charge ‘${{q}_{1}}$ is at origin and the position of charge ‘${{q}_{2}}$’ is on the x axis at 100 cm = distance.
We need to find the points on the x – axis where the absolute potential has the value zero.
To find this we know the equation for potential is,
$V=\dfrac{kq}{r}$, where ‘V’ is the electric potential, ‘k’ is a constant, ‘q’ is the charge and ‘r’ is the distance of separation.
Now let us consider a point where the net electric potential is zero and let the distance from ‘${{q}_{1}}$’ to this point be ‘${{r}_{1}}$’ and distance from ‘${{q}_{2}}$’ to this point be ‘${{r}_{2}}$’.
Then the electric potential at this region due to the charge ‘${{q}_{1}}$’can be written as,
${{V}_{1}}=\dfrac{k{{q}_{1}}}{{{r}_{1}}}$
And the electric potential at this point due to the charge ‘${{q}_{2}}$’ can be written as,
${{V}_{2}}=\dfrac{k{{q}_{2}}}{{{r}_{2}}}$
We assumed that the electric potential at this point is zero. We know that for the electric potential experienced due to two charges to be zero, ${{V}_{1}}$ and ${{V}_{2}}$ must be equal to each other.
Therefore,
$\Rightarrow {{V}_{1}}+{{V}_{2}}=0$
$\Leftrightarrow {{V}_{1}}=-{{V}_{2}}$
$\Rightarrow \dfrac{k{{q}_{1}}}{{{r}_{1}}}=-\dfrac{k{{q}_{2}}}{{{r}_{2}}}$
Since we know the values of ‘${{q}_{1}}$’ and ‘${{q}_{2}}$’ we can substitute them in the above equation.
$\Rightarrow \dfrac{2k}{{{r}_{1}}}=-\dfrac{-3k}{{{r}_{2}}}$
$\Rightarrow \dfrac{2k}{{{r}_{1}}}=\dfrac{3k}{{{r}_{2}}}$
Since ‘k’ is a constant and is the same value we can eliminate ‘k’.
$\Rightarrow \dfrac{2}{{{r}_{1}}}=\dfrac{3}{{{r}_{2}}}$
Thus we get the ratio of the distance of separation as,
$\Rightarrow \dfrac{{{r}_{1}}}{{{r}_{2}}}=\dfrac{2}{3}$
Consider the figure below.

In this ‘P’ is the point at which the potential is zero.
In the question we are given that the distance from ‘${{q}_{1}}$’ to ‘${{q}_{2}}$’ is 100cm.
Now let us take the distance from ‘${{q}_{1}}$’ to ‘P‘ as ‘x’ then the distance from ‘P’ to ‘${{q}_{2}}$’ will be (100 – x), i.e. here ${{r}_{1}}=x$ and ${{r}_{2}}=100-x$
From the earlier calculations we know that,
$\begin{aligned} & \dfrac{{{r}_{1}}}{{{r}_{2}}}=\dfrac{2}{3} \\\ & \Rightarrow 2{{r}_{2}}=3{{r}_{1}} \\\ \end{aligned}$
Therefore we can write,
$\begin{aligned} & 2\left( 100-x \right)=3x \\\ & \Rightarrow 2\left( 100-x \right)-3x=0 \\\ \end{aligned}$
$\Rightarrow 200-2x-3x=0$
$\Rightarrow 200=5x$
$\Rightarrow x=\dfrac{200}{5}$
$\Rightarrow x=40cm$
Hence the distance from origin to the point ‘P’ is 40 cm.

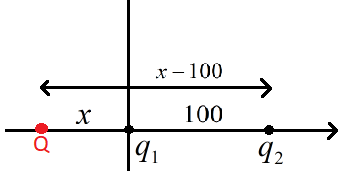

Now let us consider the figure below,

There is another point ‘Q’ on the x – axis in the negative ‘x’ direction.
Let the distance from ‘${{q}_{1}}$’ to ‘Q’ be ‘x’ then the distance from ‘${{q}_{2}}$’ to ‘Q’ will be (x-100), i.e.
${{r}_{1}}=x$
${{r}_{2}}=\left( x-100 \right)$
Since $2{{r}_{2}}=3{{r}_{1}}$, we can write
$\Rightarrow 2\left( x-100 \right)=3x$
$\Rightarrow 2x-200=3x$
$\Rightarrow 2x-3x=200$
$\Rightarrow -x=200$
$\Rightarrow x=-200cm$
Thus we have the distance from origin to the point ‘Q’ as – 200cm.
Therefore at points x = 40cm and x = – 200cm the potential will be zero.

So, the correct answer is “Option A”.

Note: Electric potential or voltage is simply the difference in potential energy per unit charge between two points in an electric field. It can also be stated as the work done in moving a unit electric charge from one point to another.
When we solve for the distance to point ‘P’, we get x = 40 cm. there we do not consider (100-x) because it is not the distance from the origin to the point ‘P’. We are asked to find the position of the point with zero electric potential. We know that when we consider position we take distance from origin.
Similarly while solving for ‘Q’, we do not consider (100 – x).
