Question

A moving coil galvanometer can be converted into an ammeter by

• A. (a) Introducing a shunt resistance of large value in series.
• A. (b) Introducing a shunt resistance of small value in parallel.
• A. (c) Introducing a resistance of small value in series.
• A. (d) Introducing a resistance of large value in parallel.

Answer 1

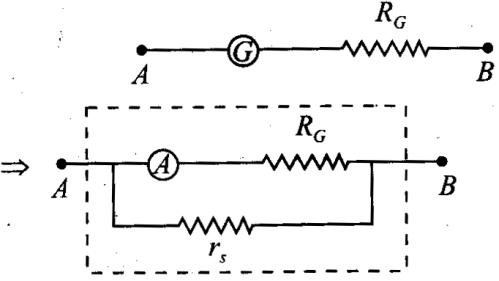

(b) To utilize a galvanometer (G) as ammeter, there is the difficulty in measurement of current due to the sensitivity of galvanometer and also connection of that may change the value of current in the circuit to overcome these difficulties one attaches a small resistance called shunt resistance in parallel with the galvanometer coil as shown in the figure.
