Question: A long solenoid has 200 turns per cm and carries a current i . The magnetic field at its centre is ...

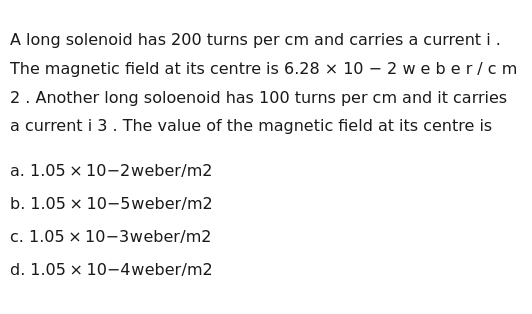

A long solenoid has 200 turns per cm and carries a current i . The magnetic field at its centre is 6.28 × 10 − 2 w e b e r / c m 2 . Another long soloenoid has 100 turns per cm and it carries a current i 3 . The value of the magnetic field at its centre is

A

1.05×10−2weber/m21.05\times10^{-2} weber/m^{2}

B

1.05×10−5weber/m21.05\times10^{-5} weber/m^{2}

C

1.05×10−3weber/m21.05\times10^{-3} weber/m^{2}

D

1.05×10−4weber/m21.05\times10^{-4} weber/m^{2}

Answer

1.05×10−2weber/m21.05\times10^{-2} weber/m^{2}

Explanation

Solution

Magnetic field due to a long solenoid is given by B=μ0niB=\mu_{0} ni

From given data, 6.28×10−2=μ0×200×102×i…(i)6.28\times10^{-2}=\mu_{0} \times200 \times10^{2}\times i \ldots\left(i\right)

and B=μ0×100×102×(i/3)…and \, \quad B=\mu_{0} \times100\times10^{2}\times\left(i / 3\right)\ldots (ii)

Solving Eqs.(i) and (ii), we get B≈1.05×10−2wb/m2B \approx1.05 \times10^{-2} wb / m^{2}
