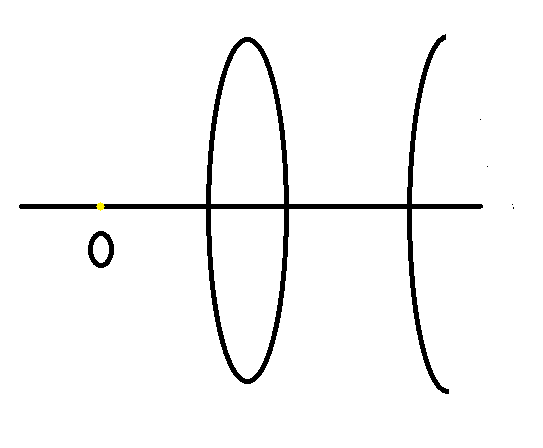

A biconvex lens, ${f_1} = 20cm$, is placed $5cm$ in front of a convex mirror, ${f_2} = 15cm$. An object of length 0f $2cm$ is placed at a distance $10cm$ from the lens. If overall magnification is $\dfrac{X}{3}$. Then find out the value of $X$?

Answer 1

Here we will be using lens formula to solve this problem. And also apply the Cartesian sign convention of lens and mirror.

Formula used:
$\dfrac{1}{f} = \dfrac{1}{v} - \dfrac{1}{u}$
Linear magnification is given by${\text{ }}m = \dfrac{v}{u}$
Total magnification, $m = {m_1} \times {m_2} \times {m_3}$
Where $f$ is the focal length, $v$ is image distance, $u$ is object distance.
Here we will be using the lens formula to solve this problem. And also apply the Cartesian sign convention of lens and mirror.

Complete step by step answer:
Let, ${f_1}$ be the focal length of the bi-convex lens and ${f_2}$ be the focal length of the convex mirror. Then an object of length $2cm$ is placed at a distance $10cm$ from the lens. Let ‘$m$’ be the linear magnification.
$\Rightarrow {f_2} = + 15cm$
${f_1} = + 20cm$, $h = 2cm$, $u = - 10cm$ (use Cartesian sign convention)
Overall magnification is $\dfrac{X}{3}$.
We have to find the value of $X$.

Case 1:
From lens formula,
$\Rightarrow \dfrac{1}{{20}} = \dfrac{1}{v} - \dfrac{1}{{ - 10}}$
$\Rightarrow v = - 20cm$
Therefore, magnification of first image,
${m_1} = \dfrac{v}{u}$
$\Rightarrow m_1= \dfrac{{ - 20}}{{ - 10}}$
$\Rightarrow m_1=+ 2$
From this we can say that, image obtained is real.

Case 2:
Now, the first image will act as the object for a convex mirror. Therefore, object distance for the mirror is
$\Rightarrow u' = \left( {20 + 5} \right)$
$\Rightarrow 25cm$
From the lens formula,
$\Rightarrow \dfrac{1}{{{f_2}}} = \dfrac{1}{{v'}} - \dfrac{1}{{u'}}$
$\Rightarrow \dfrac{1}{{15}} = \dfrac{1}{{v'}} - \dfrac{1}{{25}}$
$\Rightarrow v' = \dfrac{{75}}{8}cm$ .
Therefore second magnification will be,
$\Rightarrow {m_2} = \dfrac{{v'}}{{u'}}$
$\Rightarrow \dfrac{3}{8}$
Now, the second image acts as an object for the lens.
Then, $\Rightarrow u'' = \dfrac{{75}}{8} + 5$
$\Rightarrow \dfrac{{115}}{8}cm$
From lens formula,
$\Rightarrow \dfrac{1}{{v''}} - \dfrac{1}{{\left( {\dfrac{{115}}{8}} \right)}}$
$\Rightarrow \dfrac{1}{{ - 20}}$
$\Rightarrow {v^{''}} = \dfrac{{460}}{9}cm$
Thus, final magnification,
$\Rightarrow {m_3} = \dfrac{{{v^{''}}}}{{{u^{''}}}}$
$\Rightarrow \dfrac{{32}}{9}$
Therefore, overall magnification will be, $m = {m_1} \times {m_2} \times {m_3}$
$\Rightarrow m = 2 \times \dfrac{3}{8} \times \dfrac{{32}}{9}$
$\Rightarrow \dfrac{8}{3}$ …………. (1)
Hence, given in the question, $m = \dfrac{X}{3}$ ……………. (2)
On comparing (1) and (2), we get
$X = 8$.

$\therefore$ The value of $X=8$.
