Question

A ball with charge $-50\;e$ is placed at the centre of a hollow spherical shell that has a net charge $-50\;e$. What is the charge on the shell’s outer surface?
A. -50e
B. Zero
C. -100e
D. +100e

Answer 1

Recall that like charges repel and unlike charges attract. We are given the total charge of the shell, which is the sum of the charges on the inner surface of the shell and the outer shell surface. Now, we have a negatively charged ball placed at the centre of the hollow sphere. This ball induces a positive charge of same magnitude on the inner shell, and consequently a negative charge of the outer shell. Use this to substitute values into the total shell-charge equation and obtain the appropriate result.

Complete step by step answer:

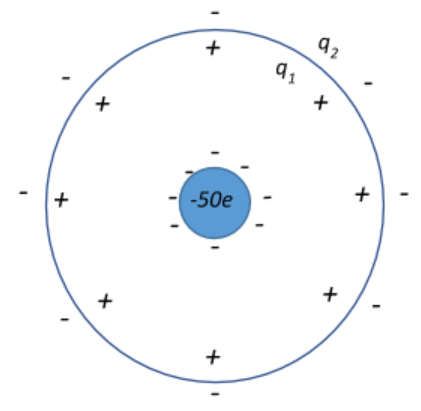

We are given that the net charge of the hollow spherical shell is $-50\;e$. This means that the sum of charges on the inner surface and outer surface of the shell is $-50\;e$. If $q_1$ is the charge on the inner surface of the shell and $q_2$ is the charge on the outer surface of the shell, then,
$q_1+q_2 = -50\;e$

Now, the charge on the inner surface of the shell is the charge induced by the presence of the ball of charge $-50\;e$. Since the ball has a charge of $-50\;e$, it induces an equal but opposite charge of the inner surface of the sphere due to electrostatic attraction. This means that $q_1 = +50\;e$
Substituting this back in our first equation, we can get the charge on the shell’s outer surface.
$+50\;e+q_2=-50\;e$
$\Rightarrow q_2 = -50\;e-50\;e = -100\;e$

So, the correct answer is “Option C”.

Note: Recall that the charges get distributed over the surface of the shell. This is because like charges move away from each other and finally orient themselves at the farthest distance. These collective distribution of charges farthest distances from the centre forms an equipotential surface. Thus, all the charge carried by the shell gets distributed over the inner and outer surface of the shell with no charges constituting the mass of the shell.
