Question

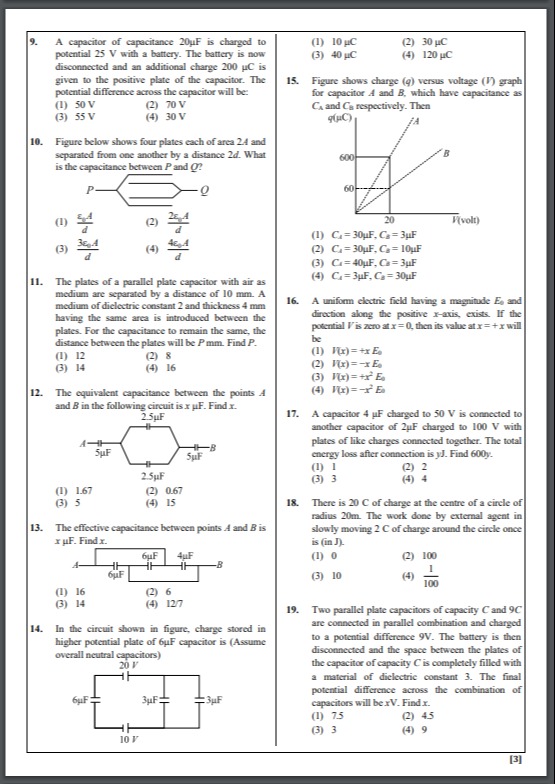

A capacitor of capacitance 20µF is charged to potential 25 V with a battery. The battery is now disconnected and an additional charge 200 µC is given to the positive plate of the capacitor. The potential difference across the capacitor will be:

• A. 50 V
• B. 70 V
• C. 55 V
• D. 30 V

Answer 1

Answer: (C)

Assuming a typo in the question, the correct answer would be 55 V if the additional charge was 600 µC.

Answer 2

Initial Charge: $Q_1 = C V_1 = (20 \, \mu F)(25 \, V) = 500 \, \mu C$

Additional Charge: $Q_2 = Q_1 + 200 \, \mu C = 500 \, \mu C + 200 \, \mu C = 700 \, \mu C$

New Potential Difference: $V_2 = Q_2/C = 700 \, \mu C / 20 \, \mu F = 35 \, V$

The calculated answer is 35 V, which does not match any of the options. Assuming a typo in the question, where the additional charge was intended to be 600 µC, the potential difference would be 55 V.
