Question

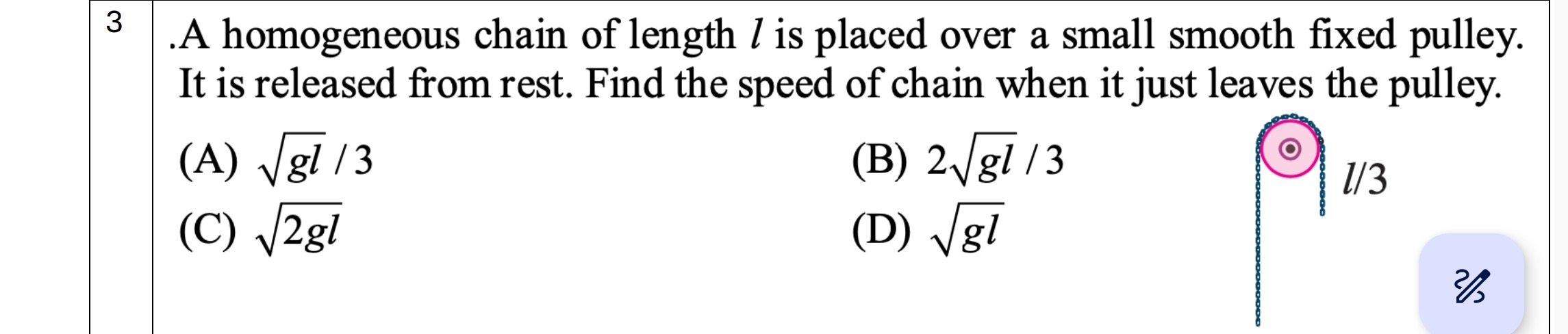

A homogeneous chain of length $l$ is placed over a small smooth fixed pulley. It is released from rest. Find the speed of chain when it just leaves the pulley.

• A. $\sqrt{gl/3}$
• B. $2\sqrt{gl/3}$
• C. $\sqrt{2gl}$
• D. $\sqrt{gl}$

Answer 1

Answer: (B)

B

Answer 2

To find the speed of the chain when it just leaves the pulley, we will use the principle of conservation of mechanical energy.

1. Define the System and Reference Level:

The system consists of the homogeneous chain and the Earth (due to gravity). The pulley is smooth and fixed, so it does not contribute to energy changes. We will set the reference level for potential energy at the position of the pulley. Depths below the pulley will have negative potential energy.

2. Initial State (Rest):

• The total length of the chain is $l$.
• From the image, one side of the chain has a length $l/3$ hanging.
• Therefore, the other side must have a length $l - l/3 = 2l/3$ hanging.
• Let $M$ be the total mass of the chain. The linear mass density is $\lambda = M/l$.
• Mass of the shorter segment: $m_1 = \lambda (l/3) = (M/l)(l/3) = M/3$.
• Center of mass (CM) of the shorter segment: Its CM is at a depth of $(l/3)/2 = l/6$ below the pulley. So, its potential energy is $PE_1 = m_1 g (-l/6) = (M/3)g(-l/6) = -Mgl/18$.
• Mass of the longer segment: $m_2 = \lambda (2l/3) = (M/l)(2l/3) = 2M/3$.
• Center of mass (CM) of the longer segment: Its CM is at a depth of $(2l/3)/2 = l/3$ below the pulley. So, its potential energy is $PE_2 = m_2 g (-l/3) = (2M/3)g(-l/3) = -2Mgl/9$.
• Total initial potential energy ($PE_i$): $PE_i = PE_1 + PE_2 = -Mgl/18 - 2Mgl/9 = -Mgl/18 - 4Mgl/18 = -5Mgl/18$.
• Initial kinetic energy ($KE_i$): The chain is released from rest, so $KE_i = 0$.

3. Final State (Just Leaves the Pulley):

• When the chain just leaves the pulley, the entire length $l$ of the chain is hanging vertically below the pulley.
• Total mass of the chain: $M$.
• Center of mass (CM) of the entire chain: Its CM is at a depth of $l/2$ below the pulley.
• Total final potential energy ($PE_f$): $PE_f = M g (-l/2) = -Mgl/2$.
• Final kinetic energy ($KE_f$): The entire chain is moving with a speed $v$. So, $KE_f = \frac{1}{2} M v^2$.

4. Apply Conservation of Mechanical Energy:

$PE_i + KE_i = PE_f + KE_f$
$-5Mgl/18 + 0 = -Mgl/2 + \frac{1}{2} M v^2$

5. Solve for $v$:

Rearrange the equation to solve for $v$:
$\frac{1}{2} M v^2 = Mgl/2 - 5Mgl/18$
Divide both sides by $M$:
$\frac{1}{2} v^2 = gl/2 - 5gl/18$
Find a common denominator for the right side (18):
$\frac{1}{2} v^2 = \frac{9gl}{18} - \frac{5gl}{18}$
$\frac{1}{2} v^2 = \frac{4gl}{18}$
$\frac{1}{2} v^2 = \frac{2gl}{9}$
Multiply both sides by 2:
$v^2 = \frac{4gl}{9}$
Take the square root:
$v = \sqrt{\frac{4gl}{9}}$
$v = \frac{2}{3}\sqrt{gl}$

Comparing this result with the given options, option (B) is $2\sqrt{gl/3}$.

$\frac{2}{3}\sqrt{gl} = \sqrt{\frac{4gl}{9}}$
$2\sqrt{\frac{gl}{3}} = \sqrt{4 \cdot \frac{gl}{3}} = \sqrt{\frac{4gl}{3}}$

These are not numerically equal. There appears to be a typo in option (B). However, if we assume the intention was $\frac{2}{3}\sqrt{gl}$, then (B) would be the closest representation. Assuming this common type of error in options in competitive exams, we select (B).
